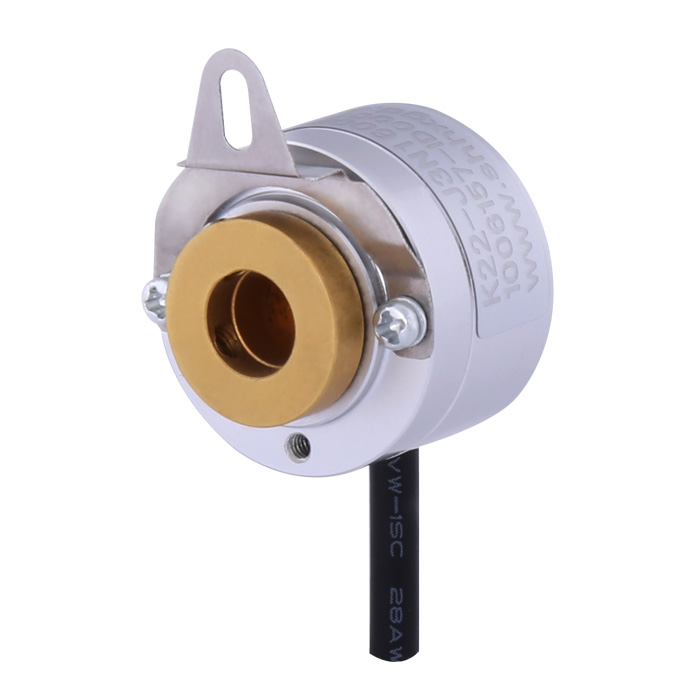

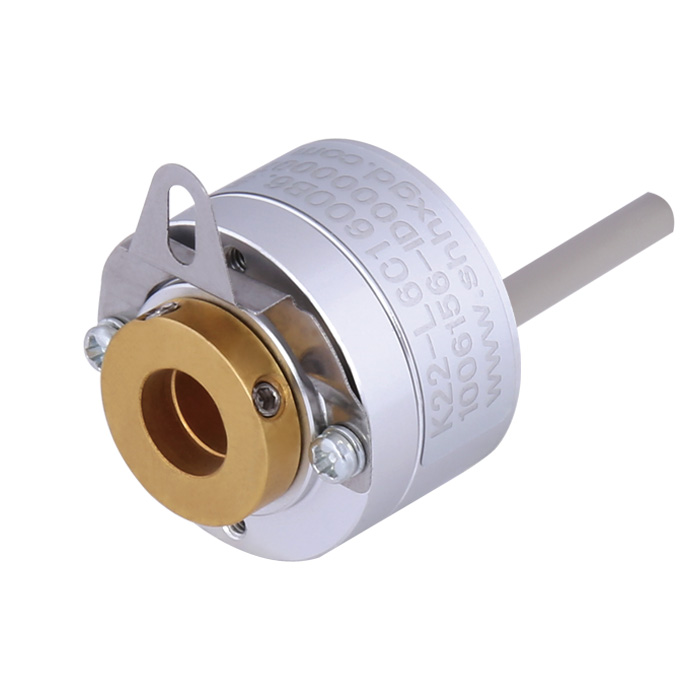

K22 mini hollow shaft rotary encoder

Product introduction：

-External diameter : Φ22mm, thickness : 18mm

-Shaft : Φ4mm;Φ5mm;Φ6mm;Φ6.5mm)

-Resolution : up to 1600/R

-Supply voltage : DC5V;DC8V-30V

Data download

Detail display

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	22mm
Thickness	18mm
Installation dimension	R12mm, spring plate 22T24
Hollow shaft type	blind hole
Hollow shaft diameter	4mm;5mm,6mm,6.5mm
Resolution	250;256;360;400;500;512；720；800；1000;1024；1440;1600
Output phase	Phase A,B,Z
Supply voltage	DC5V ; DC8-30V
Outlettype	Cable out from side
	Cable out from back
Output mode	Collector open circuit output(NPN &PNP)
	TTL(DC5V)
	HTL(DC8-30V)
Protection grade	IP50
Cable length	500mm
Consumption current	100mA MAX
Top response frenquency	300KHZ
Rise/ Fall time	1usec Max( 1000mm cable)
starting torque	less than 5x 10^-4N.m
Intertia moment	less than 1x 10^-6kg.m²
Shaft load	Radial 2N; Axial 2N
Top REV	5000r rpm
Environmental temperature	Operating:-20 ～+80°；storage:-25 ～+85°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,10-50Hz,1 hours for three axis individually
Sock(endure)	49m/s² ,three times for X,Y,Z direction individually
Shell Material	aluminium alloy
Certification	CE
package	Carton box
Net weight	About 35g (with package)
