incremental Rotary encoder solid shaft encoder

Product introduction：

-Incremental type solid shaft rotary encoder

-EEexternal diameter : Φ25mm, thickness : 30mm

-Shaft Size: Φ4mm ( D type )

-Pulse : max 2500ppr

Data download

Detail display

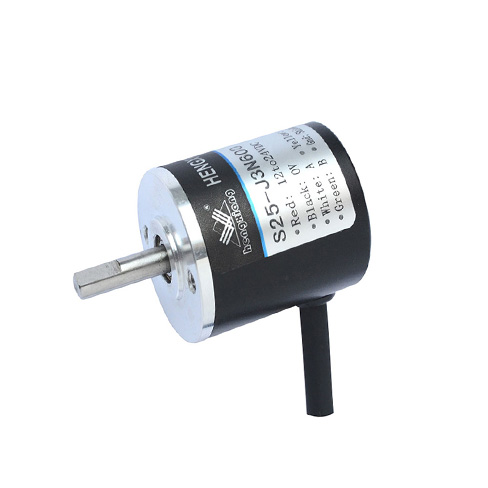

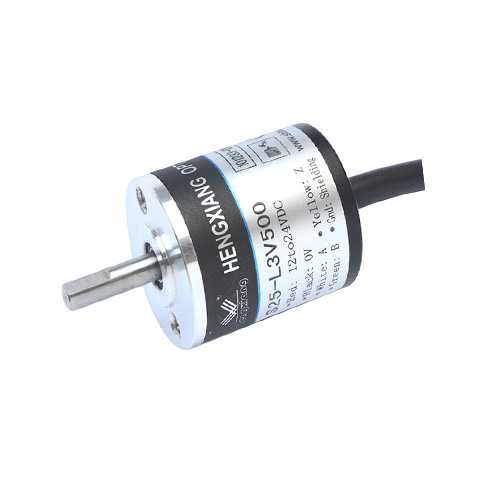

S25 rotary encoder solid shaft 4mm D-type 1440 resolution line driver 26LS31 output

Key Features of S25 solid shaft encoder

External diameter: 25mm

Solid shaft diameter: 4mm(D shape)

Thickness: 30mm

Encoder type: Incremental encoder

Resolution : 20；25；36；50;60;100;200;250;256;300;360;400;500;512; 600;625;720;1000;1024;1200;1250;1440;2000;2048;2500

Output phase: Phase A,B,Z,A-,B-,Z-

Outlet type: Cable out from side or Cable out from back

Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

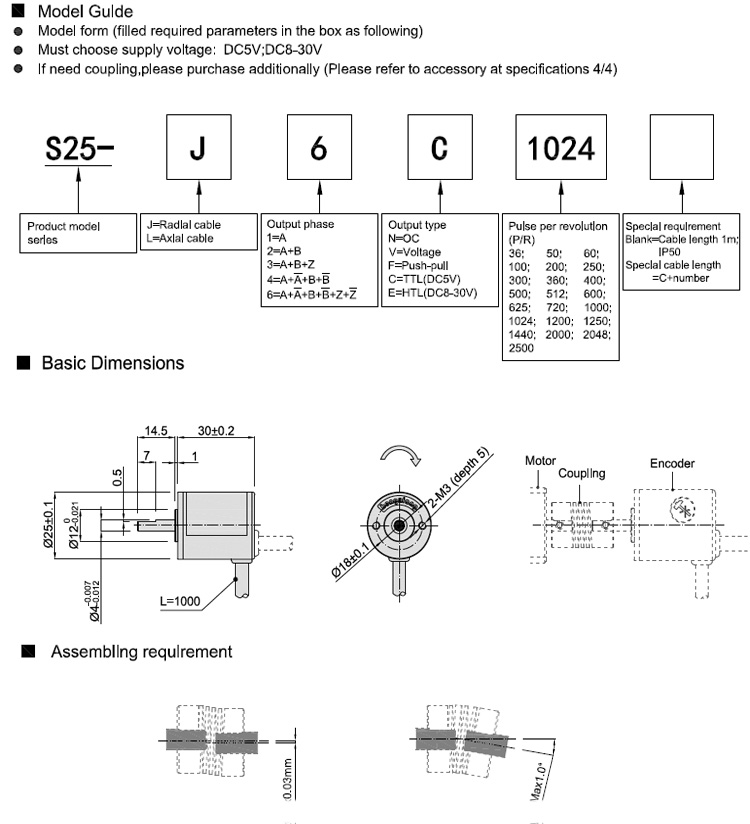

Specification

Items	Basic parameters
External dimensions	External diameter: 25mm
	Thickness: 30mm
	Shaft diameter: 4mm
Resolution	20；25；36；50;60;100;200;250;256;300;360;400;500;512;600;625;720 ;1000;1024;1200;1250;1440;2000;2048;2500
Output phase	Phase A,B,Z,A-,B-,Z-
Supply voltage	DC5V & DC8-30V
Outlettype	Cable out from side
	Cable out from back
Output mode	NPN&PNP
	Voltage output
	Push-pull output
	Difference output	Long line drive (26LS31)
		Compatible RS422
		Long line drive (RT7272)
Environmental temperature	Operating temperature: -20~+80° (Non icing)
	Storage temperature: -25~+85° (Non icing)
Environmental humanity	Operating and storage: 35~85%RH (non-condensing)
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Shell	Aluminium
package	Carton box
Net weight	80g (with package)
Certification	CE
