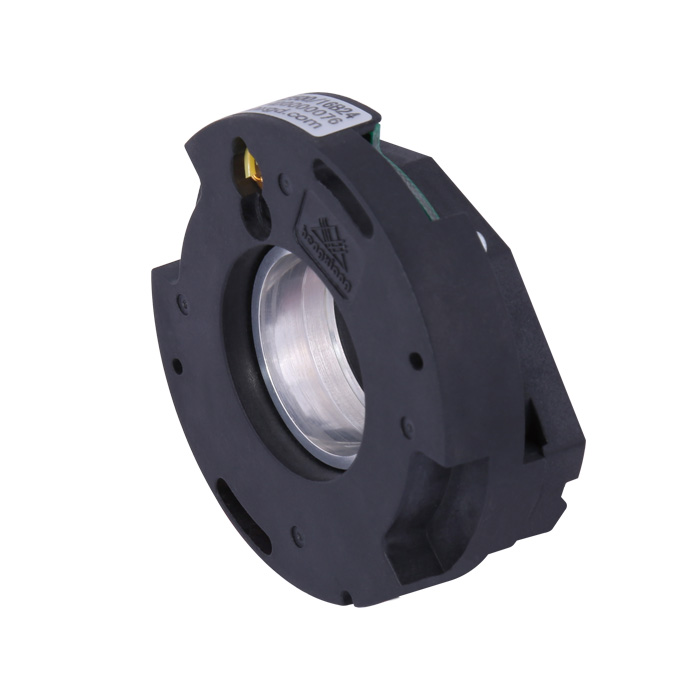

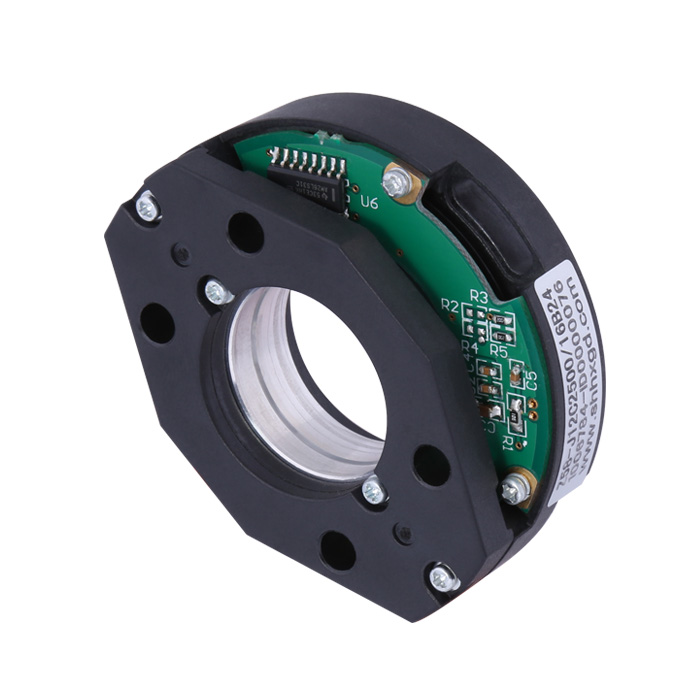

Z58 module encoder highest resolution 10000ppr for servo motor industry

Product introduction:

External dimensions : Small volume, external diameter : Φ58mm, thickness :1.5mm

diameter of shaft: Φ14-24mm

Resolution : up to 10000P/R

Supply voltage : DC5V&DC8-30V

Data download
Detail display

Z58 module encoder highest resolution 10000ppr for servo motor industry



Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 58mm
Thickness 15mm
Hollow shaft type through hole
Hollow shaft diameter 14mm;19mm;20mm;24mm;25mm
Resolution 1024/8;1024/10;1024/162048/62048/8;2048/102500/8
2500/164096/8;4096/10/;4096/16;5000/8;5000/10;
5000/16;10000/8;10000/10;10000/16
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
Consumption current 120mA MAX
Top response frenquency 300KHZ
GND not connect to encoder
Slew speed 5000rpm
Environmental temperature Operating:-20 +80°storage:-25 +90°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminium alloy
Certification CE
package Carton box
Net weight About 85g (with package)
