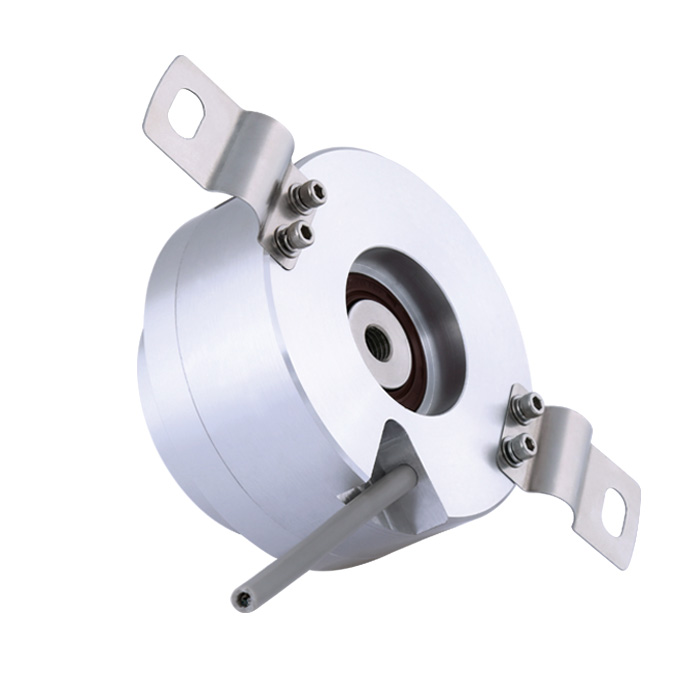

K80 incremental rotary encoder

Product introduction：

-External diameter : Φ80mm, thickness :50mm

-Shaft : Φ10.5mm；Φ12mm

-Pulse per round : Min 1000ppr, Max 32768ppr

-Mark to Space ratio : 45% to 55%

Data download

Detail display

Items	Basic parameters
Encoder type	Incremental encoder
Brand	HENGXIANG
External diameter	80mm
Thickness	50mm
Installation dimension	R60.5mm(spring plate 80T121)
Hollow shaft type	through hole
Hollow shaft diameter	10.5mm,12mm
Resolution	1000;1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
	7200;8192;10000；14400;16384；28800；32768
Output phase	Phase A+,B+,Z+,A-,B-,Z-
Supply voltage	DC5V ; DC8-30V

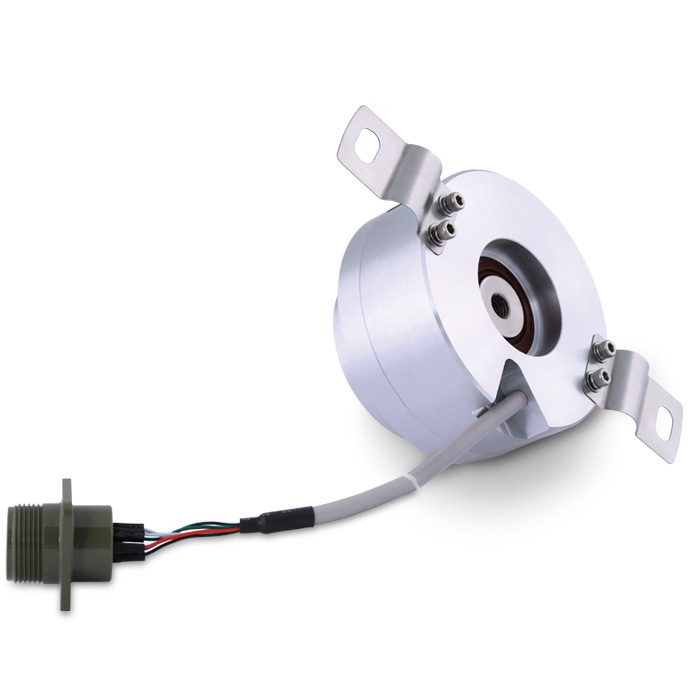

Outlettype	Cable out from side or socket from side
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
Consumption current	100mA MAX
Top response frenquency	100KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
GND	not connect to encoder
Mark to Space ratio	45% to 55%
starting torque	less than 20N.m
Intertia moment	less than 25x 10^-6kg.m²
Shaft load	Radial 50N; Axial 30N
Top REV	2000RPM ; IP65
Bearing life	1.5x10⁹ revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～+85°；storage:-25 ～+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure)	1000m/s² ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
Cable length	1000mm(cable with shielding)
Protection grade	IP50;IP65
Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Certification	CE
package	Carton box
Net weight	About 600g (with package)
