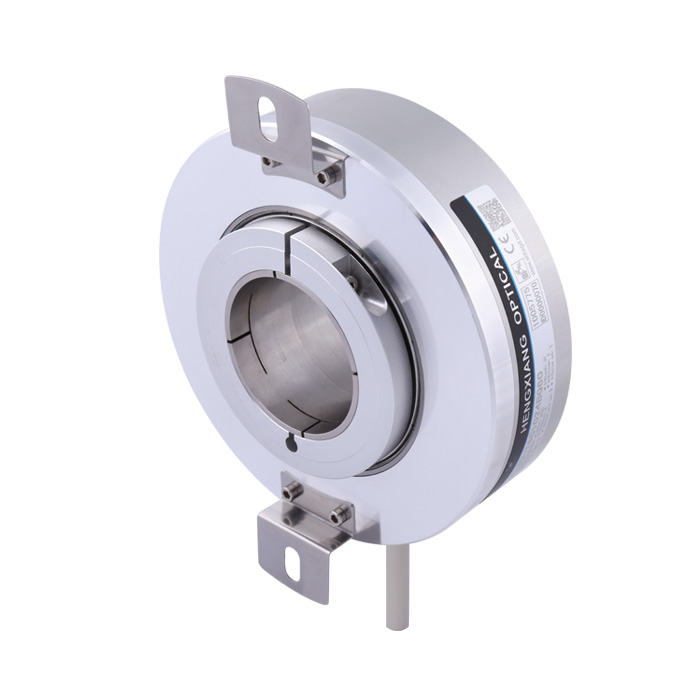

K130 large hole incremental encoder

Product introduction:

-External diameter : Φ130mm, thickness :48mm

-Shaft : Φ48mm;Φ55mm;Φ60mm

-Pulse per round : Min 1024ppr, Max 65536ppr

Data download
Detail display
Items  Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 130mm
Thickness 48mm
Installation dimension R72.5mm(spring plate 130T145)
Hollow shaft type through hole (clamping ring at prior)
Hollow shaft diameter 48mm,55mm,60mm;
Resolution  1024;2048;4096;8192;16384;32768;65536
Output phase Phase  A+,B+,Z+,A-,B-,Z-
Supply voltage DC5V ; DC8-30V
Outlettype Socket out from side
Output mode Push-pull output
 line drive (26LS31) TTL
 line drive(DC8-30V) HTL
Consumption current 100mA MAX
Top response frenquency 300KHZ
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 300 x 10-3 N.m
Intertia moment less than 220x 10-6kg.m2
Shaft load Radial 90N; Axial 60N
Top REV 3000RPM
Environmental temperature Operating:-20  +85°storage:-25 +90°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
Sock(endure) 1960m/s2 (200g),11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material  aluminium alloy
Cable length 1000mm(cable with shielding)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by
       require, but it need payment individually)
Certification  CE
package Carton box
Net weight  About  1700g (with package)
