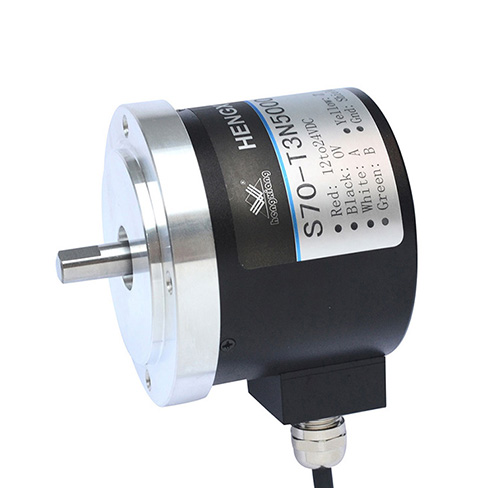

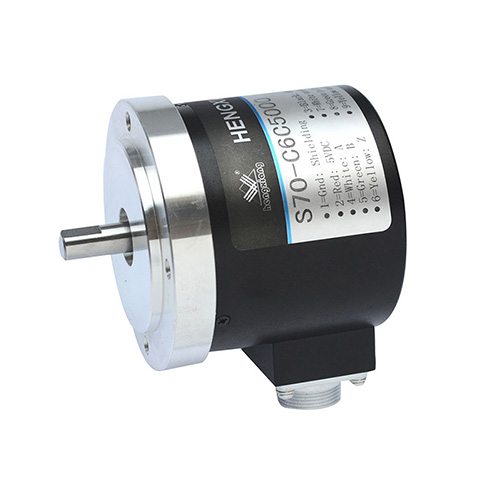

S70-T Solid Shaft rotary encoder

Product introduction:

-External dimensions:external diameter:Φ70mm,thickness:60mm

-Diameter of shaft:Φ8mm (D type)

-Connect type :Cable out from side(with metal sleeve)

Data download
Detail display

Items Basic parameters
External dimensions External diameter: 70mm
Thickness: 60mm
Shaft diameter: 8mm (D type)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
8192;1000011520163842000023040
Output phase A,B,Z,A-,B-,Z-
Supply voltage DC5V & DC8~30V
Outlettype Cable out from side (with metal sleeve)

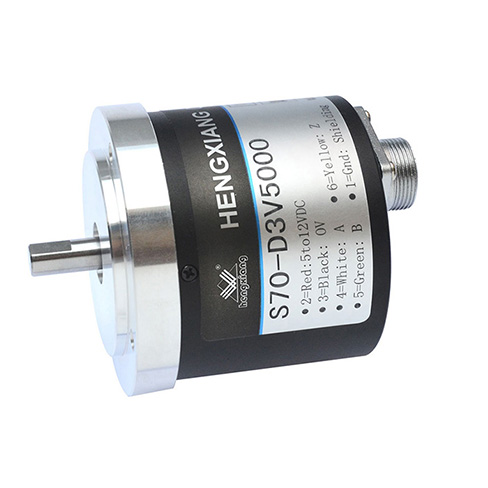

Socket at side
Output mode Collector open circuit output
Voltage output
Push-pull output
Difference output Long line drive( 26LS31)
Compatible RS422
Long line drive( RT7272)
Environmental temperature Operating temperature: -10~+70° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 & IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight About 350g (with package)


More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.


Lead time:

1-3 working days for sample
7-10 working days for mass production


Shipment:

we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.

so that we could offer the best shipping cost with encoder products while quotation.

If you do not have your own courier account, our factory will check the cheapest price with suitable express together,

then you won't have to worry about shipment.
