Product introduction：

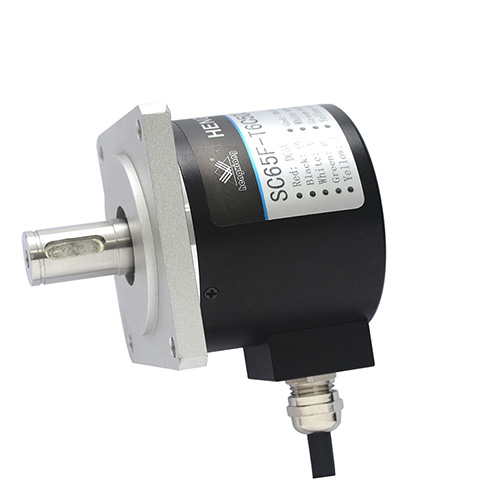

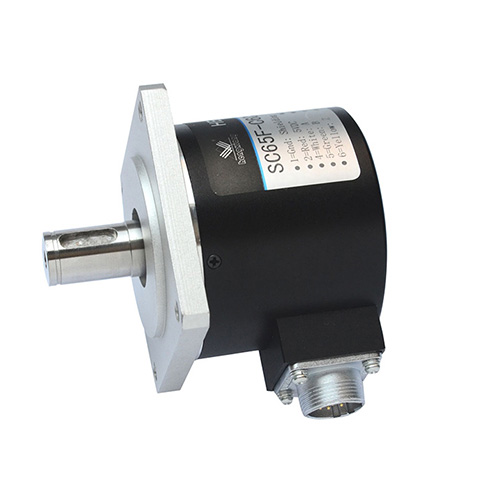

-heavy duty encoder solid shaft
-Outer diameter : Φ65mm(flange68*68) thickness : 59mm
-Shaft Size : Φ15mm , key way : 5*5mm
-Outlet :Cable or Socket from side
Position：HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀65mm
Product introduction：
-heavy duty encoder solid shaft
-Outer diameter : Φ65mm(flange68*68) thickness : 59mm
-Shaft Size : Φ15mm , key way : 5*5mm
-Outlet :Cable or Socket from side
SC65F Flange Solid Shaft encoder Keyway heavy duty encoder solid shaft 15mm SC65F 6 phase line driver output dc8-30v
Factory Encoder Production Capability
5000 pieces per month
-------- Production Line Capacity
50000 pieces per year
--------Actual Units Produced (Previous Year)
Product Information for SC65F incremental encoder
| Items | Basic parameters | |
| External dimensions | External diameter: 65mm,Thickness: 58.5mm | |
| Installation Size:56*56mm, Key Slot 5mm*5mm | ||
| Shaft diameter: 15mm | ||
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000 | |
| 1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000; | ||
| 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040 | ||
| Output phase | Phase A,B,Z or A- B- Z- | |
| Supply voltage | DC5V & DC8-30V | |
| Outlettype | Cable out from side with metal sleeve | |
| Socket out from side | ||
| Output mode | Open Collector(NPN) circuit output | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| Compatible RS422 | ||
| Long line drive (RT7272) | ||
| Environmental temperature | Operating temperature: -20~+80° (Non icing) | |
| Storage temperature: -25~+85° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 & IP65 | |
| Cable length | 1M (cable length could be added appropriately by | |
| require, but it need payment individually) | ||
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 590g (with package) | |
| Certification | CE | |
