Product introduction：
-optical quadrature encoder flange encoder
-External diameter : Φ50mm, thickness : 35.7mm
-Shaft:Φ8mm (D type)
-Pulse per round : max to 23040P/R
Position：HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀50mm
Product introduction：
-optical quadrature encoder flange encoder
-External diameter : Φ50mm, thickness : 35.7mm
-Shaft:Φ8mm (D type)
-Pulse per round : max to 23040P/R

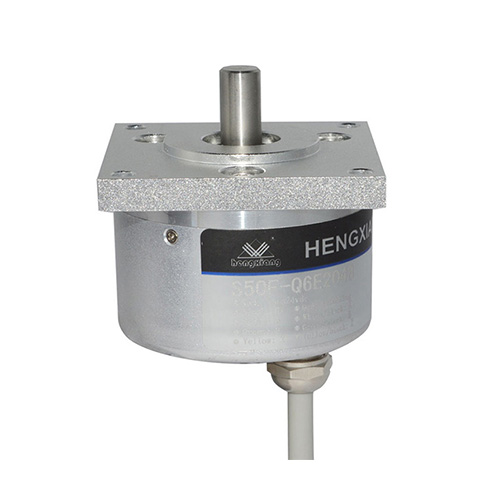

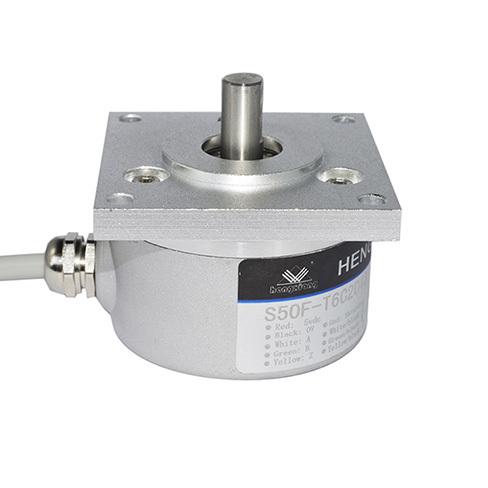

S50F Shaft Incremental encoder with Flange optical quadrature encoder 4096 pulse 5000rpm solid shaft 8mm

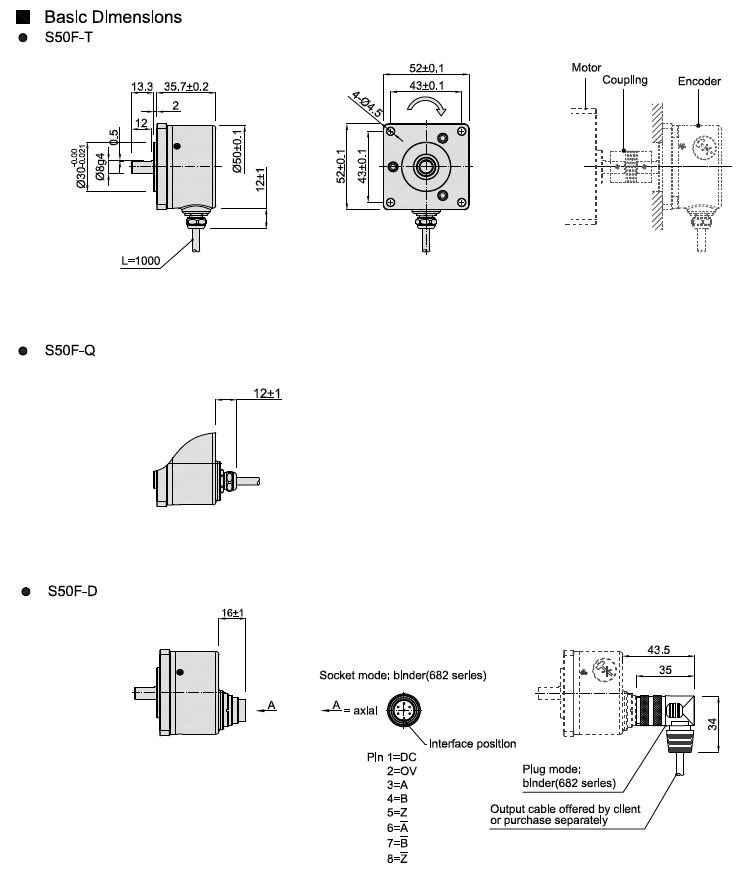

Quick review of S50F encoder
Installation dimension: 43mm x 43mm
Shaft length: 13.3mm
Solid Shaft diameter：8mm(D shape)
Encoder type：Incremental encoder
Brand：HENGXIANG
Consumption current：100mA MAX
Mark to Space ratio：45% to 55%
Top REV：5000RPM ;IP65≤3000 RPM
Shell Material：die cast aluminum
S50F rotary encoder Product introduction
| Items | Basic parameters | |
| External dimensions | External diameter: 50mm | |
| Thickness: 35.7mm | ||
| Shaft diameter: 8mm | ||
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000 | |
| 1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000; | ||
| 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040 | ||
| Output phase | Phase A,B,Z or A- B- Z- | |
| Supply voltage | DC5V & DC8-30V | |
| Outlettype | Cable out from side | |
| Cable out from back | ||
| Socket out from back | ||
| Output mode | Collector open circuit output | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| Compatible RS422 | ||
| Long line drive (RT7272) | ||
| Environmental temperature | Operating temperature: -20~+80° (Non icing) | |
| Storage temperature: -25~+85° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 & IP65 | |
| Cable length | 1000mm | |
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 220g (with package) | |
| Certification | CE | |
More details
MOQ: 1pcs
Price:Click online service or email us right now to get the latest quotation.
Some model number of S50F Series encoder
S50F-T6C4096
S50F-Q4E3600
S50F-D3N3000
S50F-T3F2880
S50F-Q2V2500
S50F-D1F2048
S50F-T6E2000
S50F-Q3P360
S50F-D2F300
