Product introduction：
-Encoder type: Optical Incremental encoder
-Shell : Die cast aluminum
-Resolution : Max to 23040P/R
-Supply voltage : DC5V&DC8V-30V
Position：HOME > PRODUCTS > Encoder > Incremental -Hollow Shaft Encoder > ⌀50mm
Product introduction：
-Encoder type: Optical Incremental encoder
-Shell : Die cast aluminum
-Resolution : Max to 23040P/R
-Supply voltage : DC5V&DC8V-30V

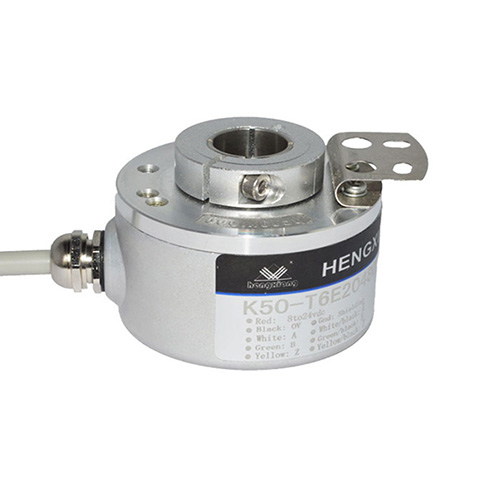

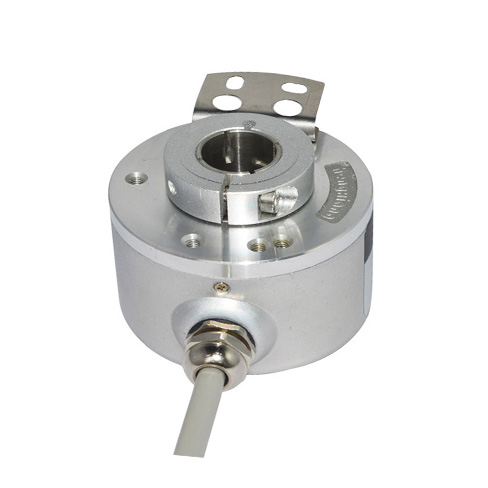

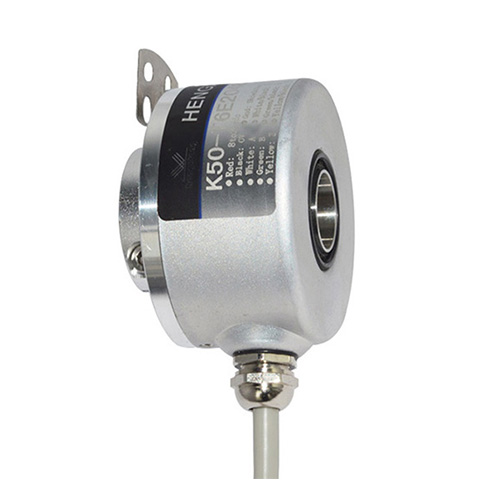

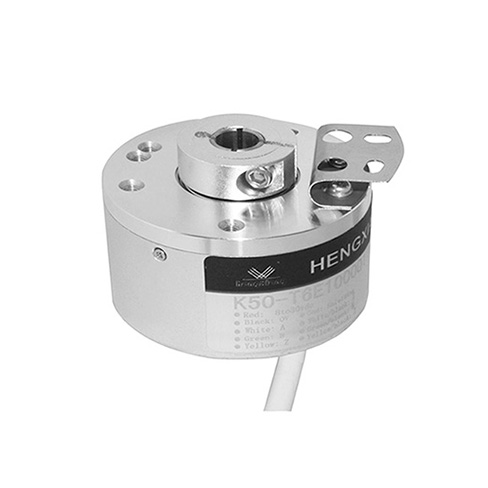

K50 rotary encoder with Hollow Shaft NPN High level efficiency optical rotary encoders hollow shaft 12mm 2048 pulse encoder
Production Catalogue
Please email us directly or contact online service to get the latest catalogue right now.
Package
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
Shipment
1. Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
2. You could select the express according to your requirements if freight collector
3. If you do not have any courier account, we will check and find a cheapest and safety express for you.
4. Our factory has 30% discount with most courier company, so price could be as cheap as possible.
Product Basis information
Encoder type: Incremental encoder
External diameter: 50mm
Installation dimension: R27.5mm,R30mm, R34.5mm
Hollow shaft type: blind hole ; through hole
Output phase: Phase A,B,Z A- B- Z-
Supply voltage: DC5V ; DC8-30V
Environmental humanity: Operating and storage: 35~85%RH (non-condensing)
Shell : Die cast aluminum
Consumption current: 100mA Max
Our advantage
Professional working team
High quality standard
Quick Response time
Utility Model Patent Certificate
Own brand and unique brand
CE certification for all models
Prompt delivery date
100% full inspection before shipment
Application
Brushless dc motor
Servo motor
Drawing machine
VFD
Inverter
Variable frequency driver
Embroidery machine
Elevator
Printing machinery
Projector
Injection molding machine
Product introduction
| ITEM | PARAMTERS | ||||||

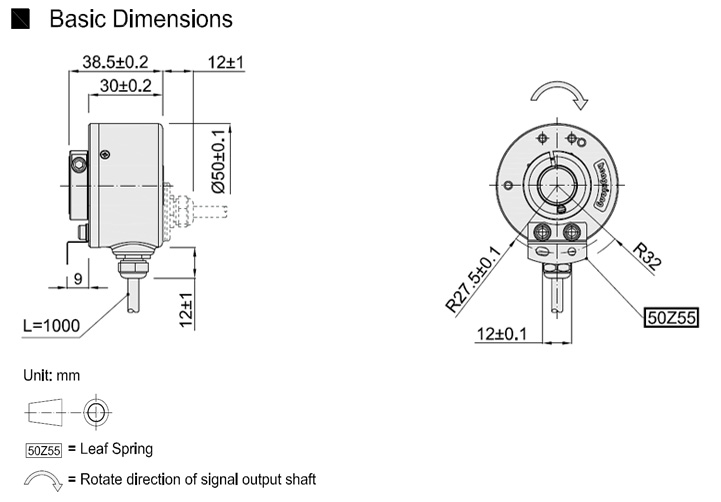

| External dimensions | External diameter: 50mm ;Thickness: 30mm ;Shaft diameter: 8mm/10mm/12mm/14mm/15mm | ||||||
| Resolution |
50;60;100;200;250;256;300;360;400;450;500;512;600;700;720;800;900;1000;1024; 1200;2000;2048;2500;5000;8192;10000；11520；16384；20000；23040 |
||||||
| Output phase | Phase A,B,Z,A-,B-,Z- | ||||||
| Outlettype | Cable out from side & back | ||||||
| Protection grade | IP50 & IP65 | ||||||
| Cable length | 1000MM | ||||||
| package | Carton box | ||||||
| Weight | About 200g (with package) | ||||||
| Certification | CE/ ISO9001 | ||||||
| Output mode | N -open Collector(NPN) | V-Voltage output | F-Push-pull output | C- Line driver (26LS31) & RS422 | E- Line driver(7272) | ||
| Supply voltage | DC+5V±5% & DC8-30V±5% | DC+5V±5% | DC8-30V±5% | ||||
| Consumption current | 100mA MAX | 200mA MAX | 100mA MAX | ||||
| Top response frenquency | 100KHZ | 200KHZ | 300KHZ | ||||
| Output volume | output current | Input | ≤30mA | Load resistance 2.2K | ≤30mA | ≤±20mA | ≤±50mA |
| output | - | ≤10mA | |||||
| output voltage | "H" | - | - | ≥(supply voltage-2.5V) | ≥2.5V | ≥-3V | |
| "L" | ≤0.4V | ≤0.7V(Less than 20mA) | ≥0.4V(when≤30) | ≤0.5V | ≤1V | ||
| Load Voltage | ≤DC30V | - | |||||
| Rise & Fall time | less than 2us(load resistance 1KΩ、cable length:2M | less than 1us(cable length:2m) | ≤100ns | ||||
| Origin motion | low lelvel available | high level available | low level available | - | |||
| starting torque | 9.8x10-3 N.m(100gf.cm) Max | ||||||
| Intertia moment | 6.5x10-6kg.m2 Max | ||||||
| Shaft load | Radial 50N; Axial 30N | ||||||
| Top REV | 5000RPM | ||||||
| Environmental temperature | Operating:-20 ～+90°；storage:-25 ～+90° | ||||||
| Enviromental humidity | Operating and storage: 35-90%RH(noncondensing) | ||||||
| Vibration(endure) | 49m/s2 (5G) | ||||||
| Sock(endure) | 490m/s2 (50G) | ||||||
| Material | Die Cast Aluminum | ||||||
| Cable length | 1000mm(cable with shielding) | ||||||
