Product introduction：
-External diameter : Φ22mm, thickness : 18mm
-Shaft : Φ4mm;Φ5mm;Φ6mm;Φ6.5mm)
-Resolution : up to 1600/R
-Supply voltage : DC5V;DC8V-30V
Position：HOME > PRODUCTS > Encoder > Incremental -Hollow Shaft Encoder > ⌀22mm
Product introduction：
-External diameter : Φ22mm, thickness : 18mm
-Shaft : Φ4mm;Φ5mm;Φ6mm;Φ6.5mm)
-Resolution : up to 1600/R
-Supply voltage : DC5V;DC8V-30V
| Items | Basic parameters | |
| Brand | HENGXIANG | |
| Encoder type | Incremental encoder | |
| External diameter | 22mm | |
| Thickness | 18mm | |
| Installation dimension | R12mm, spring plate 22T24 | |
| Hollow shaft type | blind hole | |
| Hollow shaft diameter | 4mm;5mm,6mm,6.5mm | |
| Resolution | 250;256;360;400;500;512；720；800；1000;1024；1440;1600 | |
| Output phase | Phase A,B,Z | |
| Supply voltage | DC5V ; DC8-30V | |

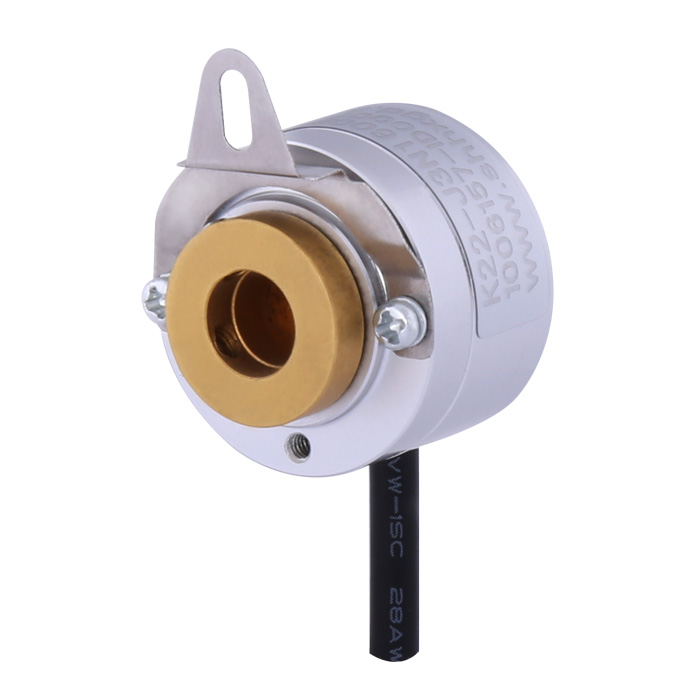

| Outlettype | Cable out from side | |

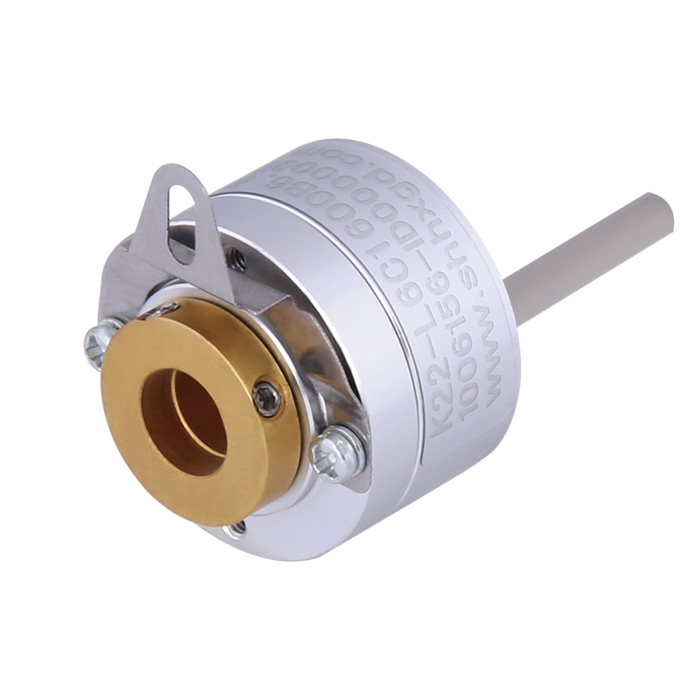

| Cable out from back | ||
| Output mode | Collector open circuit output(NPN &PNP) | |
| TTL(DC5V) | ||
| HTL(DC8-30V) | ||
| Protection grade | IP50 | |
| Cable length | 500mm | |
| Consumption current | 100mA MAX | |
| Top response frenquency | 300KHZ | |
| Rise/ Fall time | 1usec Max( 1000mm cable) | |
| starting torque | less than 5x 10-4 N.m | |
| Intertia moment | less than 1x 10-6kg.m2 | |
| Shaft load | Radial 2N; Axial 2N | |
| Top REV | 5000r rpm | |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+85° | |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | |
| Vibration(endure) | Amplitude 0.75mm,10-50Hz,1 hours for three axis individually | |
| Sock(endure) | 49m/s2 ,three times for X,Y,Z direction individually | |
| Shell Material | aluminium alloy | |
| Certification | CE | |
| package | Carton box | |
| Net weight | About 35g (with package) | |
