Mini Servo Motor encoder 15 wires 2500ppr encoder ...

Product introduction：

-External diameter Φ35mm,thickness 18mm

-Resolution: Max to 14400P/R

-Supply voltage: DC5V & DC8-30V

-Slew speed:5000RPM

Data download

Detail display

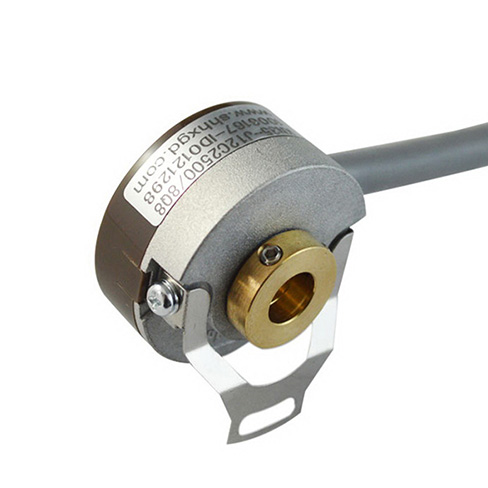

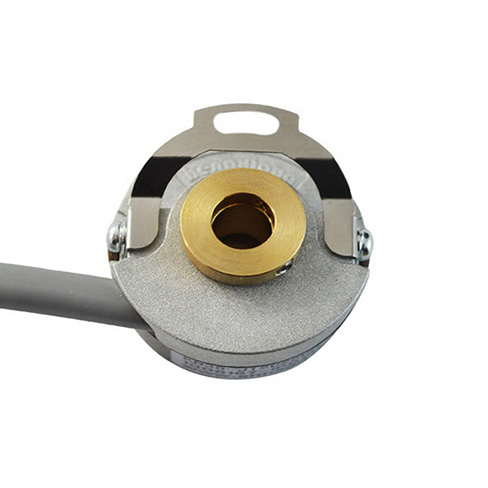

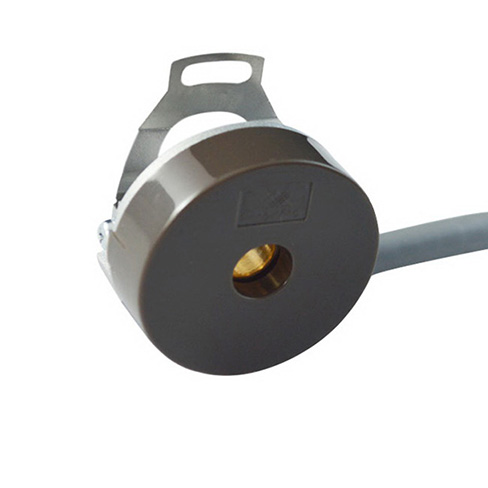

Mini Servo Motor encoder 15 wires 2500ppr encoder Ultra-thin 18mm quadrature optical encoder through hole shaft encoder

KN35 Series encoder model Number for reference

KN35-J12C2500/8

KN35-J12E2048/4

KN35-J12C1024/8

KN35-J12E1000/6

KN35-J12C5000/8

KN35-J12E4096/6

KN35-J12C2500/4

KN35-J12E2048/8

KN35-J12C1024/6

KN35-J12E1000/4

Product introduction of KN35 Series

Brand	HENGXIANG

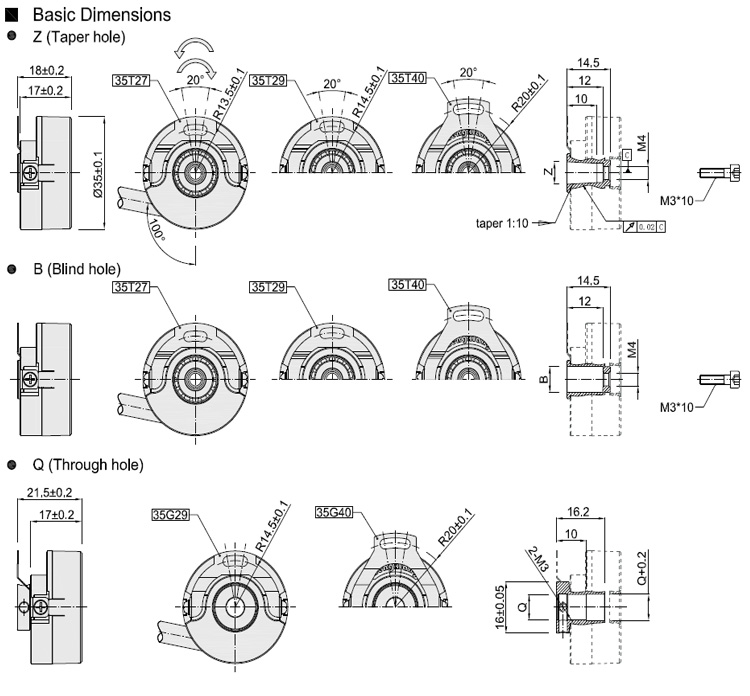

External Dimensions	External diameter: 35mm
	Thickness: 18mm
	Shaft diameter:6mm/7mm/8mm
Resolution	1024;2048;2500;3600;5000;7200;10000;14400

	1000/6; 1000/8; 1024/6; 1024/8; 2048/6; 2048/8; 2500/6; 2500/8
Output Phase	Phase A,B,Z,U,V,W,
Supply voltage	DC5V & DC8-30V
Outlet type	Cable out from side
Output Mode	Collector open circuit output(NPN &PNP)
	Voltage output
	Line Driver (26LS31)
	Line Driver ( 26C31)
	Line Driver(IC-HD7)
Environmental temperature	Operating temperature:-20~+100° (Non icing)
Environmental temperature	Storage temperature: -25~+110° (Non icing)
Environmental humanity	Operating and storage: 35~90%RH (non-condensing)
Protection grade	IP40
Cable length	500mm (cable length could be added )
Shell	Aluminium
Package	Carton box
Net weight	About 80g (with package)
Certification	CE

More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.

Lead time:

1-3 working days for sample
7-10 working days for mass production

Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.

Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)

Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
