IMG58B-500/50/1-ABC-PT-51 7-370-02-012-1

Refernece our part number S58C series.

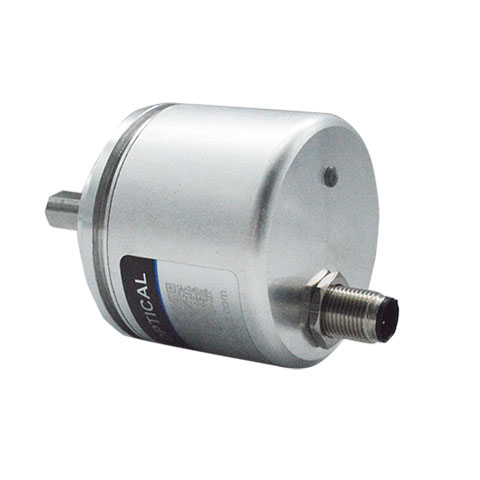

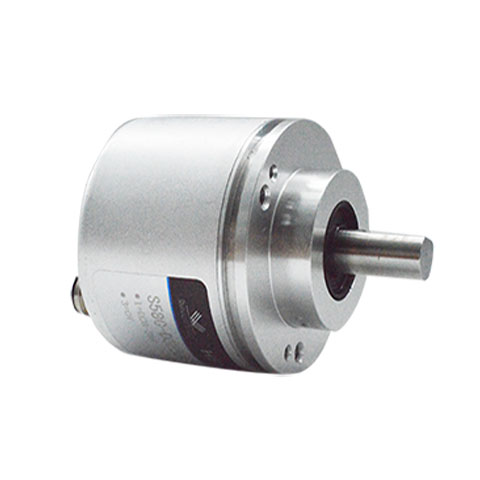

this encoder is a robust rotary encoder with servo clamping flange for industrial usage.
highest durability avaible, high protection level of IP67

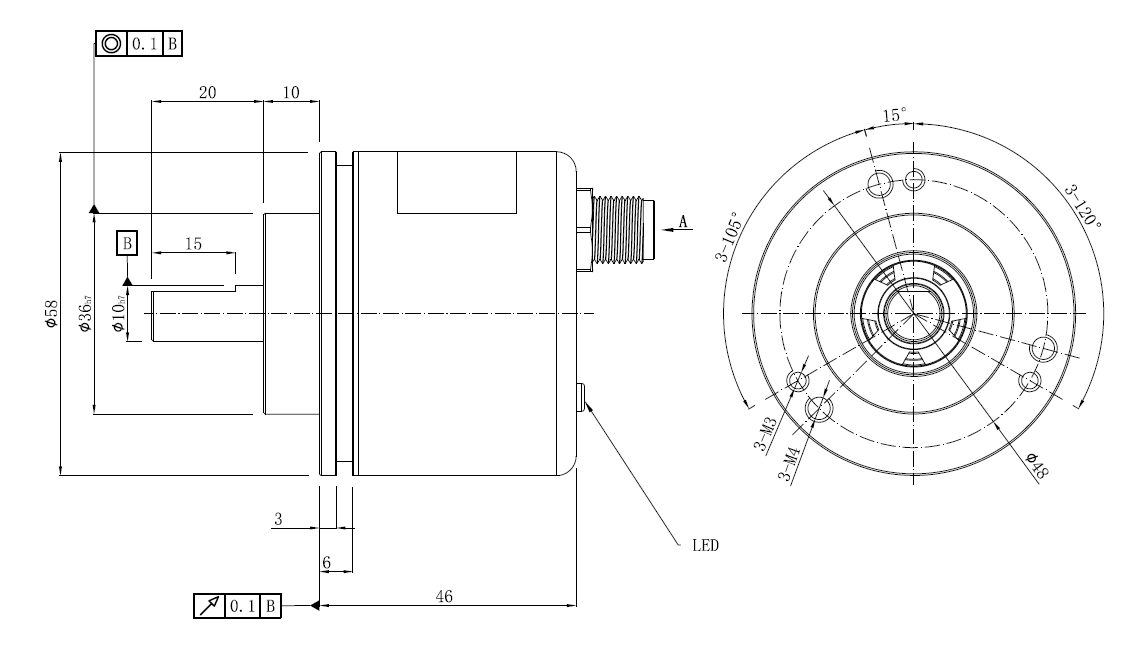

there are two moutiong options, which can be installed by both M3 or M4 threaded screws from front, as well as with three clamps from the mounting side.
It serves a cylindrical approach with a diameter of 36mm as centering.
It is particularly suitable for medium to large mechanical Loads or high speeds device.
it also gives each turn three defined position to each standing impulse sequences.
Furthermore, the device has via an optical status display of the C channel.

Pulse Per Turn:

Chnnel A: 500

Chnnel C: 1

Space Radio

Pulse duration T = oscillation time T = 2π = 360 °.
0 ° phase shift from channel A and B to channel C.
Pulse tolerance ± 20 °. Pulse-pause ratio 1: 1
