Product introduction：
-Solid Shaft incremental encoder
-External diameter : Φ38mm, encoder thickness : 28mm
-Shaft diameter :Φ6mm (D shape)
-Pulse per turn: range from 50ppr to 16384ppr
Position：HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀38mm
Product introduction：
-Solid Shaft incremental encoder
-External diameter : Φ38mm, encoder thickness : 28mm
-Shaft diameter :Φ6mm (D shape)
-Pulse per turn: range from 50ppr to 16384ppr

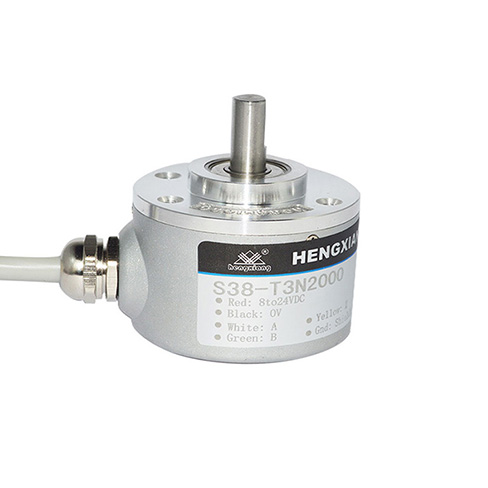

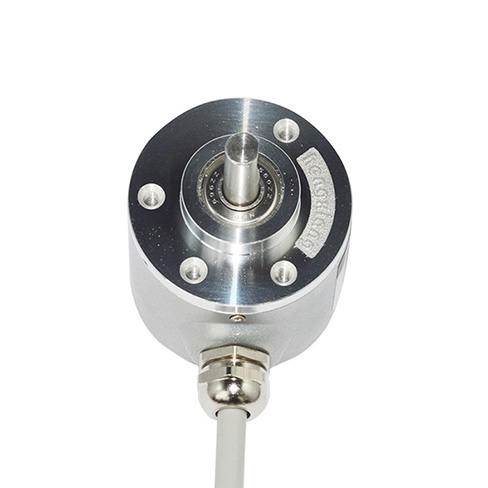

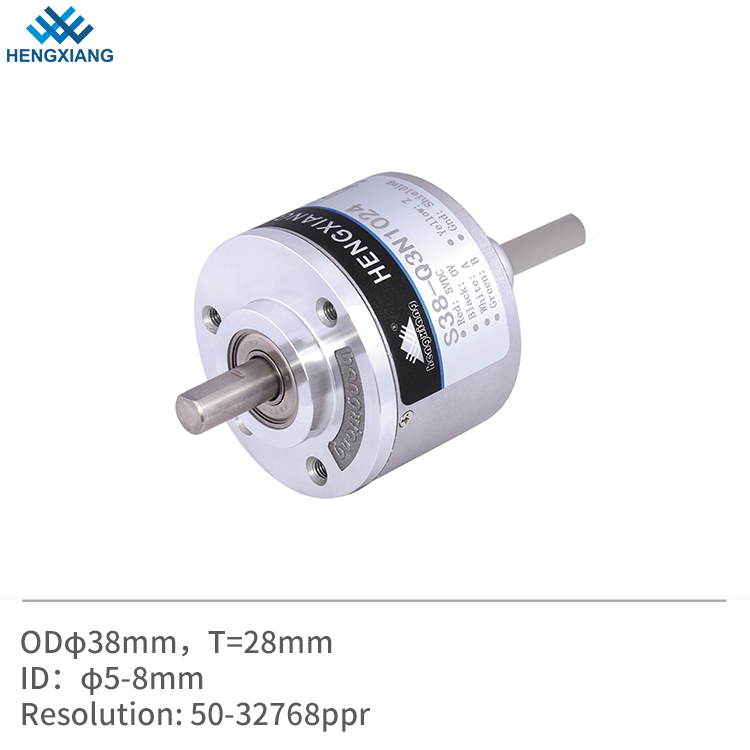

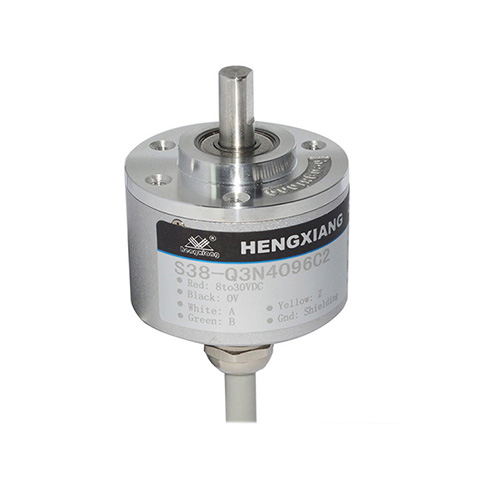

S38-T Solid Shaft incremental encoder industrial rotary encoders digital encoder 6mm shaft Speed 8000 rev / min
1. S38 Encoder Characteristic:
Max resolution16384ppr
External diameter 38mm
Thickness 28mm
Shaft length 13mm
Power supply voltage 5V or 8--30V
Axial Cable outlet or Radial Cable outlet
2. Basic Parameters
| Items | Basic parameters | |
| External dimensions | External diameter: 38mm | |
| Thickness: 28mm | ||
| Shaft diameter: 6mm | ||
| Resolution | 50;60;66;100;200;250;256;300;360;400;450;500;512;600; | |
| 700;720;800;900;1000;1024;1200;2000;2048;2500;5000；8192；10000；16384 | ||
| Output phase | Phase A,B,Z,A-,B-,Z- | |
| Supply voltage | DC5V & DC8-30V | |
| Outlettype | Cable out from side | |
| Cable out from back | ||
| Output mode | NPN&PNP | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| Compatible RS422 | ||
| Long line drive (RT7272) | ||
| Environmental temperature | Operating temperature: -20~+80° (Non icing) | |
| Storage temperature: -25~+85° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 & IP65 | |
| Cable length | 1M (cable length could be added appropriately by | |
| require, but it need payment individually) | ||
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 120g (with package) | |
| Certification | CE | |

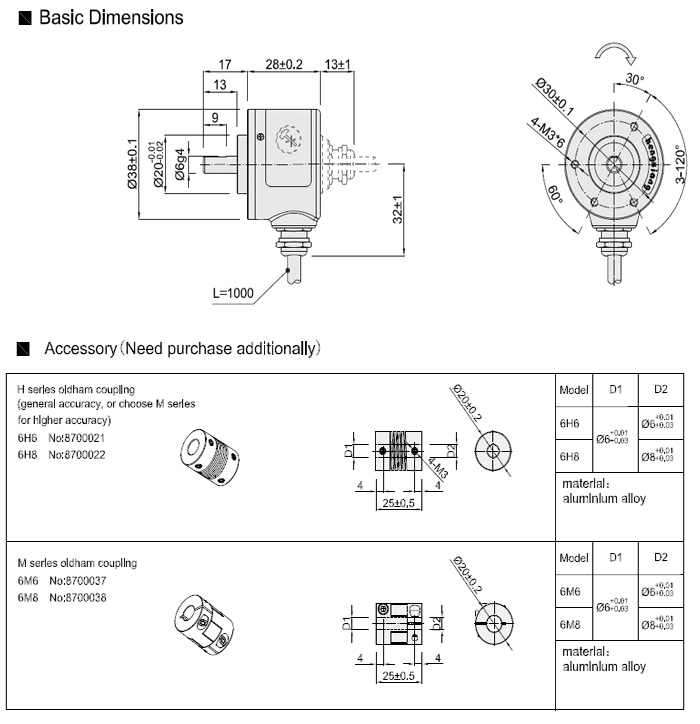

3. Dimensions
4. Applications
S38 series rotary encoder can be widely used on servo motor, robot, industry machine, etc,
Encoders are used to translate rotary or linear motion into a digital signal, which can be seen by simply number to read, thus you can control these numbers by your controller to further movements,
5. Our advantage
Our factory has been in encoder filed for over 18 years, starting from 2001, we produced our first encoder production, after several years development, now our factory has more and more production series, such as incremental encoder, absolute encoder, magnetic encoder,,etc.
We have our own engineers team, we designed our brand of encoder product and every inside structure by many times of experiments.
6. FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
7. Some Related S38 encoder model number
S38-T1N500
S38-T2N500
S38-T3N500
S38-T4C512
S38-T6C512
S38-T6C720
S38-QNF1024
S38-Q3F2500
S38-Q3V2000
S38-T6C13684
…
6. Production date
3 working days for sample
7-10 days for mass production
Delivery date is according to the quantity you order.
7. Shipment
There are two method of shipment right now,
One is our factory check freight cost from FedEx, UPS, DHL,TNT, etc, for you to get the cheapest quotation and shipping date.
The other is you offer your own courier account when ordering, so we can use your express account to arrange the shipment.
We can work with both two method of shipping.
