Position:HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀25mm

S25 mini Solid incremental encoder electronic encoder optical encoder Miniature rotary encoder with keyway S25 encoder mini shaft 4mm voltage output

Product introduction:

-Incremental type (solid shaft)

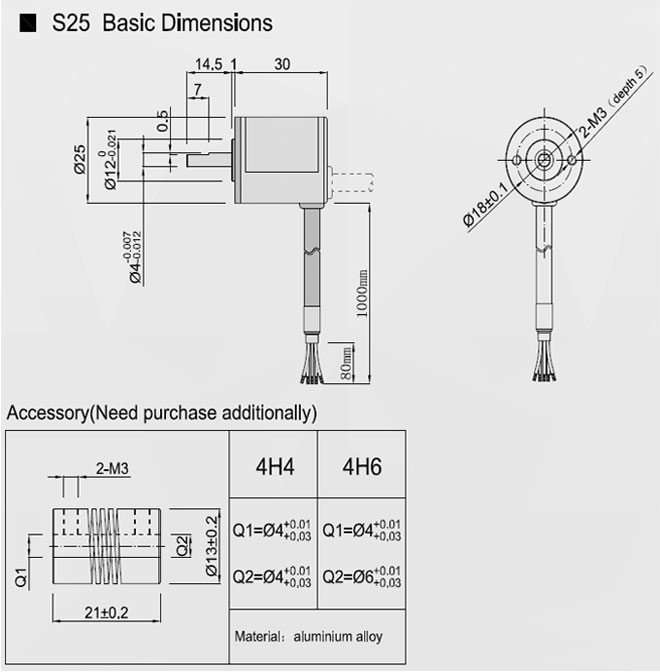

-External dimensions : external diameter : Φ25mm, thickness : 30mm

-Diameter of shaft : Φ4mm ( D type )

-Resolution : up to 2500P/R

Data download
Detail display

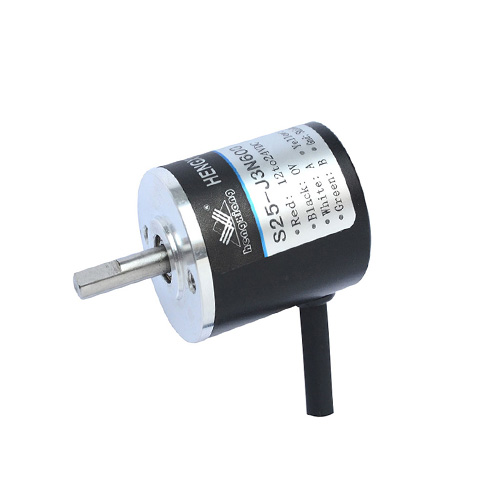

Miniature rotary encoder with keyway S25 encoder mini shaft 4mm voltage output


About Our Factory

o Own brand of "HENGXIANG" encoder

o Has ISO90012000 Quality Management System Certificate and CE Certification

o Invention patents five and utility model patents five

o Passed Shanghai New and High-tech Achievements Transformation Project.

o Our target: Meeting Client's RequirementCreating Social valueserving clients attentively and Achieving win-win.

o Located in Shanghai city

o 20-30 experienced workers

Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid

Shipment

o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

o You could select the express according to your requirements if freight collector

o If you do not have any courier account, we will check and find a cheapest and safety express for you.

o Our factory has 30% discount with most courier company, so price could be as cheap as possible.

S25 encoder Specification

Items Basic parameters
External dimensions External diameter: 25mm
Thickness: 30mm
Shaft diameter: 4mm
Resolution

20253650;60;100;200;250;256;300;360;400;500;512;600;625;720

;1000;1024;1200;1250;1440;2000;2048;2500

Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side
Cable out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight 80g (with package)
Certification CE



More details


Our Service

o Quick response once received customer’s quotation query

o Professional engineer team, to solve your problems at any time

o Strictly inspection before shipment

o Various encoder models to be selected

o Short lead time

o High quality standard

Production Catalogue

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.

Some Related S25 encoder model number

· S25-J3V600C2 DC5V

· S25-J3N36C3 DC12V

· S25-J3F50 DC24V

· S25-J2F200C2.5 DC5-12V

· S25-J2N250 DC5-30V

· S25-J3F300 DC12-24V

· S25-J2V512C3 DC8-30V

· S25-J2N2500C5 DC5-24V

· S25-J3F2048DC5-12V

· S25-J1N2000 DC5-24V

· S25-J1V1440 DC24V

· S25-J6C1250 DC5V

· S25-J6E1200 DC8-30V

· S25-J3F1024 DC5-24V

· S25-J6C600C5 DC12-24V

· S25-J6E720C3 DC24V

· S25-J3N625C4 DC5-12V

· S25-J3F2500 DC24V
