Product introduction：
-External diameter : Φ51mm, thickness : 29mm
-Shaft : Φ8mm
-Resolution : 12bit(4096)
Output : gray code without reading error
Position：HOME > PRODUCTS > Encoder > Absolute - Solid Shaft > ⌀50mm
Product introduction：
-External diameter : Φ51mm, thickness : 29mm
-Shaft : Φ8mm
-Resolution : 12bit(4096)
Output : gray code without reading error
| Brand | HENGXIANG |
| External dimensions | External diameter: 51mm |
| Thickness: 29mm | |
| Shaft diameter:8mm(D shape) | |
| Resolution | Up to 12bit(4096ppr) |
| Count Direction | CW/ CCW |
| Supply voltage | DC5V & DC8-30V |
| Allow slew speed | constant 3000min; moment 5000min(mechanical) |

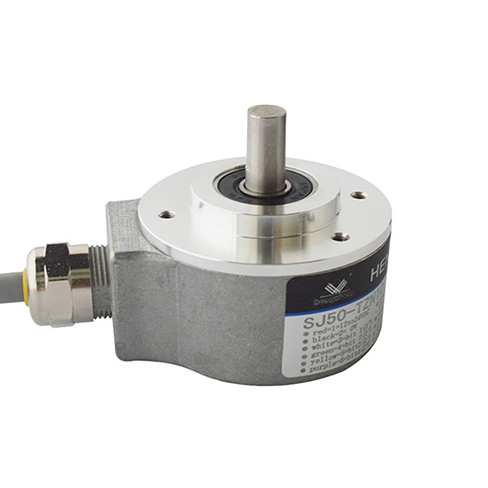

| Outlet type | Cable out from side |

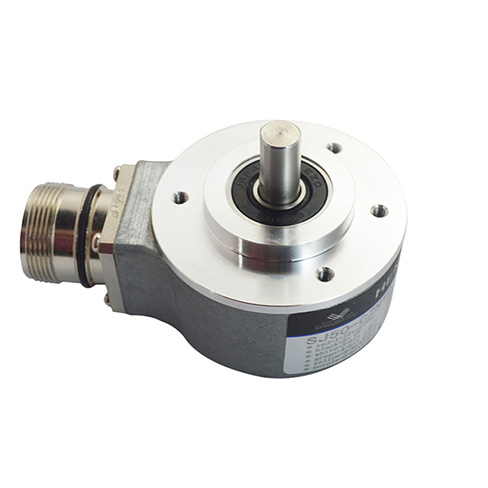

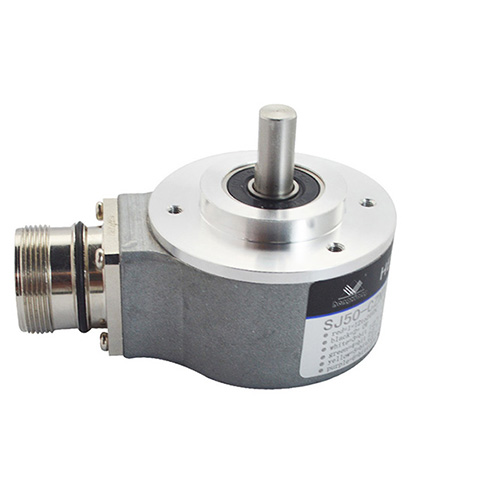

| Cable out from side with socket | |
| Socket out from back | |
| Circuit output | 1. NPN open collector output with low level available |
| 2. PNP open collector output with low level available | |
| Output mode | Binary Gray code (parallel) |
| Environmental temperature | Operating temperature: -20~+85° (Non icing) |
| Storage temperature: -25~+100° (Non icing) | |
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
| Protection grade | IP50&IP65 |
| Cable length | 1000mm |
| Shell | Aluminium |
| Package | Carton box |
| Net weight | About 300g |
| Certification | CE |
