KJ50-T Absolute Rotary Encoder Hollow Shaft

Product introduction:

-External diameter : Φ51mm, thickness : 29mm

-Shaft : 8mm;10mm;12mm;14mm;15mm

-Resolution : 12bit(4096)

Output : gray code without reading error

Data download
Detail display

Brand HENGXIANG
External dimensions External diameter: 51mm
Thickness: 29mm
Hollow Shaft diameter:8mm;10mm;12mm;14mm;15mm
Resolution Up to 12bit(4096ppr)
Count Direction CW/ CCW
Supply voltage DC5V & DC8-30V
Allow slew speed constant 3000min; moment 5000min(mechanical)

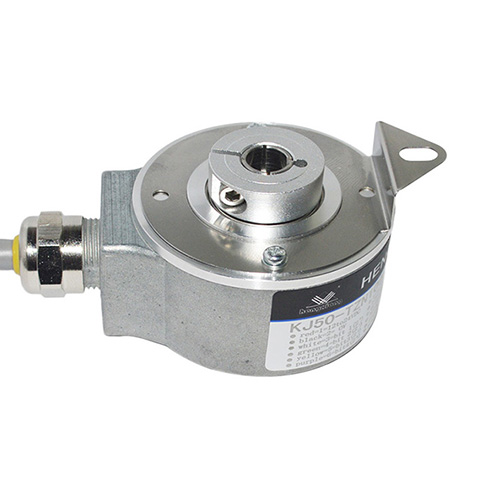

Outlet type Cable out from side

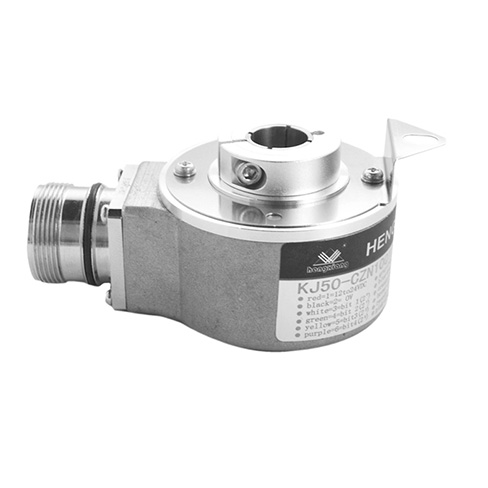

Cable out from side with socket
Socket out from back
Circuit output 1. NPN open collector output with low level available
2. PNP open collector output with low level available
Output mode Binary Gray code (parallel)
Environmental temperature Operating temperature: -20~+85° (Non icing)
Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50&IP65
Cable length 1000mm
Shell Die Cast Aluminium
Package Carton box
Net weight About 310g
Certification CE

More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.


Lead time:

1-3 working days for sample
7-10 working days for mass production


Shipment:

we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.

so that we could offer the best shipping cost with encoder products while quotation.

If you do not have your own courier account, our factory will check the cheapest price with suitable express together,

then you won't have to worry about shipment.
