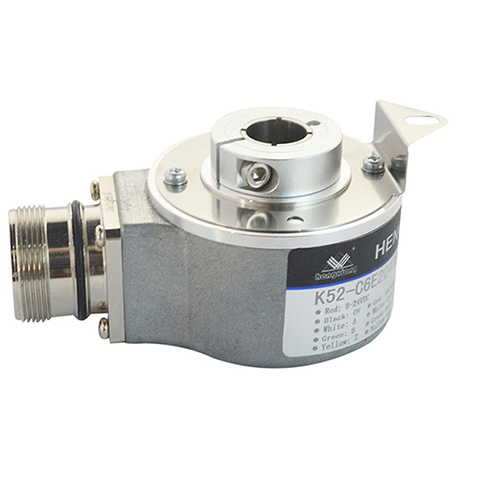

Product introduction：
-External diameter : Φ51mm, thickness : 39mm
-Shaft : Φ15mm;Φ14mm;Φ12mm;Φ10mm；Φ8mm
-Resolution : Max to 23040P/R
-Phase； A;B;Z;U;V;W
Position：HOME > PRODUCTS > Encoder > Incremental -Hollow Shaft Encoder > ⌀52mm
Product introduction：
-External diameter : Φ51mm, thickness : 39mm
-Shaft : Φ15mm;Φ14mm;Φ12mm;Φ10mm；Φ8mm
-Resolution : Max to 23040P/R
-Phase； A;B;Z;U;V;W
| ITEM | PARAMTERS | ||||||
| External dimensions |
External diameter: 51mm ;Thickness: 39mm ;Shaft diameter: 8mm/10mm/12mm/14mm/15mm |
||||||
| Resolution | 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600;4096;5000;5760;8192;10000；11520；16384；20000；23040 1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;2048/8; 4096/4;4096/6;4096/8;8192/4;8192/6;8192/8 | ||||||
| Output phase | Phase A,B,Z,U,V,W | ||||||
| Outlettype | Cable& Socket out from side | ||||||
| Protection grade | IP50 &IP66 | ||||||
| Cable length | 1000MM | ||||||
| package | Carton box | ||||||
| Weight | About 310g (with package) | ||||||
| Certification | CE/ ISO9001 | ||||||
| Output mode | N -open Collector(NPN) | V-Voltage output | F-Push-pull output | C- Line driver (26LS31) & RS422 | E- Line driver(7272) | ||
| Supply voltage | DC+5V±5% & DC8-30V±5% | DC+5V±5% | DC8-30V±5% | ||||
| Consumption current | 100mA MAX | 200mA MAX | 100mA MAX | ||||
| Top response frenquency | 100KHZ | 200KHZ | 300KHZ | ||||
| Output volume | output current | Input | ≤30mA | Load resistance 2.2K | ≤30mA | ≤±20mA | ≤±50mA |
| output | - | ≤10mA | |||||
| output voltage | "H" | - | - | ≥(supply voltage-2.5V) | ≥2.5V | ≥-3V | |
| "L" | ≤0.4V | ≤0.7V(Less than 20mA) | ≥0.4V(when≤30) | ≤0.5V | ≤1V | ||
| Load Voltage | ≤DC30V | - | |||||
| Rise & Fall time | less than 2us(load resistance 1KΩ、cable length:2M | less than 1us(cable length:2m) | ≤100ns | ||||
| Origin motion | low lelvel available | high level available | low level available | - | |||
| starting torque | 9.8x10-3 N.m(100gf.cm) Max | ||||||
| Intertia moment | 6.5x10-6kg.m2 Max | ||||||
| Shaft load | Radial 50N; Axial 30N | ||||||
| Top REV | 5000RPM | ||||||
| Environmental temperature | Operating:-20 ～+85°；storage:-25 ～+90° | ||||||
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | ||||||
| Vibration(endure) | Amplitue 1.52mm, 5-55Hz ,2h for three axis individually | ||||||
| Sock(endure) | 980m/s2(100G) | ||||||
| Material | Die Cast Aluminum | ||||||
| Cable length |
1000mm(cable with shielding) |
||||||
More details
MOQ: 1pcs
Price:Click online service or email us right now to get the latest quotation.
Lead time:
1-3 working days for sample
7-10 working days for mass production
Shipment:
we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.
so that we could offer the best shipping cost with encoder products while quotation.
If you do not have your own courier account, our factory will check the cheapest price with suitable express together,
then you won't have to worry about shipment.
