Product introduction：
External dimensions : Small volume, external diameter : Φ48mm, thickness : 22.5mm
diameter of shaft: Φ8mm
Resolution : up to 1024P/R
Supply voltage : DC5V;DC8-30V

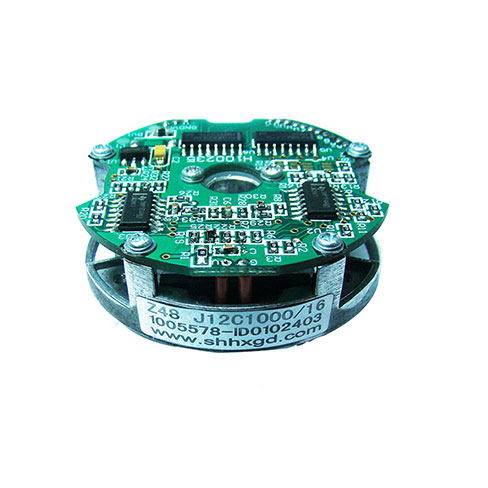

Z48 series photoelectric encoder component
encoder modulator
Incremental type
External dimensions : Small volume, external diameter : Φ48mm, thickness : 22.5mm
diameter of shaft: Φ8mm
Resolution : up to 1024P/R
Supply voltage : DC5V&DC12V-24V
Output mode : Opencollector output,Voltage output,push-pull output,Long ling drive
| Items | Basic parameters | |
| Brand | HENGXIANG | |
| Encoder type | bearingless encoder | |
| External diameter | 48mm | |
| Thickness | 22.5mm | |
| Dimension of limiting slot | 30mm, depth 2.4mm | |
| Installation dimension | R22.35mm | |
| Hollow shaft type | through hole | |
| Hollow shaft diameter | 8mm | |
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600;1000; | |
| 1024;1200;2000;2048;2500; | ||
| 1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8; | ||
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- | |
| Supply voltage | DC5V ; DC8-30V | |
| Outlettype | Cable out from side | |
| Output mode | NPN/(Open Collector Output) | |
| line drive (26LS31) TTL | ||
| line drive(DC8-30V) HTL | ||
| Cable length | 500mm | |
| Consumption current | 100mA MAX | |
| Top response frenquency | 300KHZ | |
| Allowable ripple | ≤3%rms | |
| Load Voltage | ≤DC30V | |
| Insulation strength | AC500V 60s | |
| Insulation resistance | 10MΩ | |
| GND | not connect to encoder | |
| Mark to Space ratio | 45% to 55% | |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+90° | |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | |
| Material | aluminium alloy | |
| Certification | CE | |
| package | Carton box | |
| Net weight | About 60g (with package) | |
