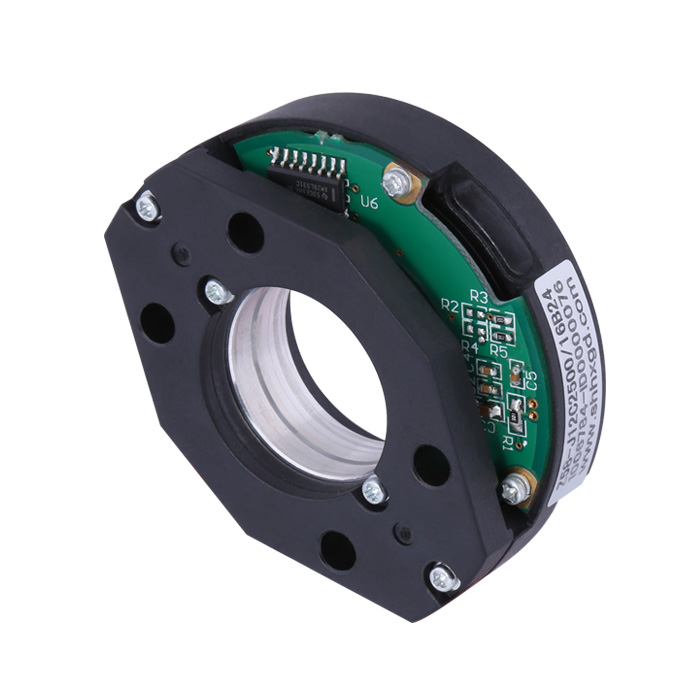

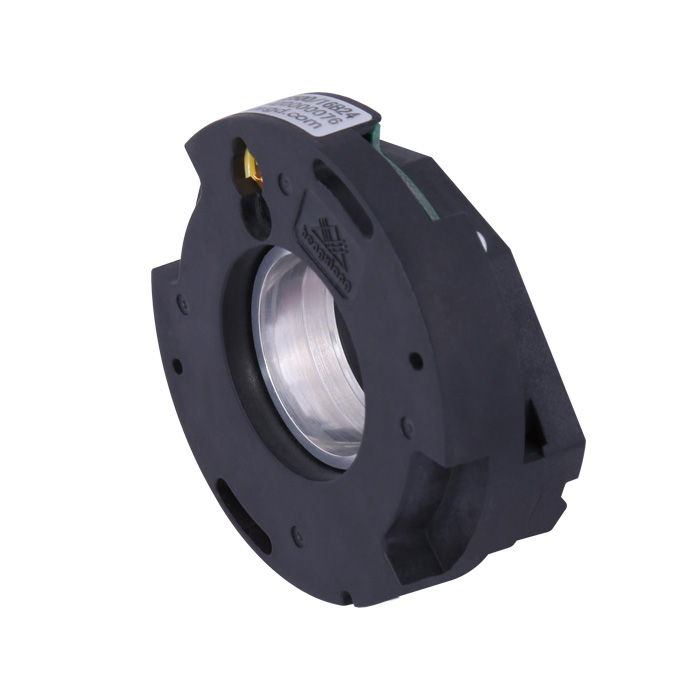

Z58 thin bearingless encoder module

Product introduction：

External dimensions : Small volume, external diameter : Φ58mm, thickness :1.5mm

diameter of shaft: Φ14-24mm

Resolution : up to 10000P/R

Supply voltage : DC5V&DC8-30V

Data download

Detail display

Z58 thin bearingless encoder module

Items	Basic parameters
Brand	HENGXIANG
Encoder type	bearingless encoder
External diameter	58mm
Thickness	15mm
Hollow shaft type	through hole
Hollow shaft diameter	14mm;19mm;20mm;24mm;25mm
Resolution	1024/8;1024/10;1024/16；2048/6；2048/8;2048/10；2500/8；
	2500/164096/8;4096/10/;4096/16;5000/8;5000/10;
	5000/16;10000/8;10000/10;10000/16
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8--30V
Outlet type	Cable out from side
Output mode	line drive (26LS31) TTL
Output mode	line drive(DC8-30V) HTL
Cable length	300mm
Consumption current	120mA MAX
Top response frenquency	300KHZ
GND	not connect to encoder
Slew speed	5000rpm
Environmental temperature	Operating:-20 ～+80°；storage:-25 ～+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Material	aluminium alloy
Certification	CE
package	Carton box
Net weight	About 85g (with package)
