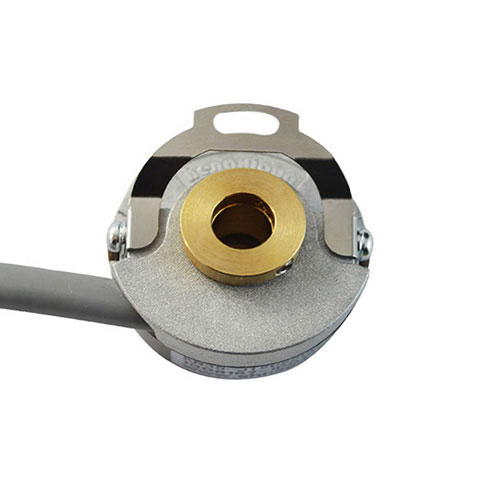

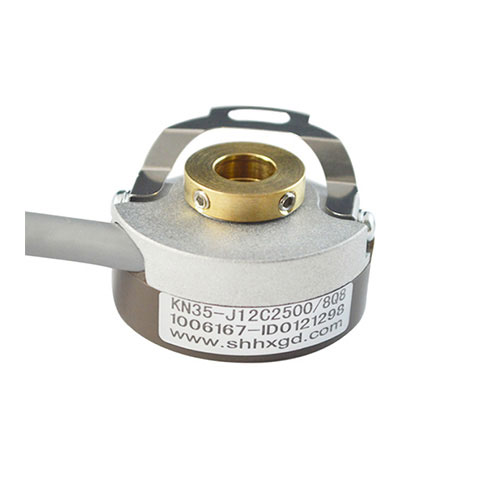

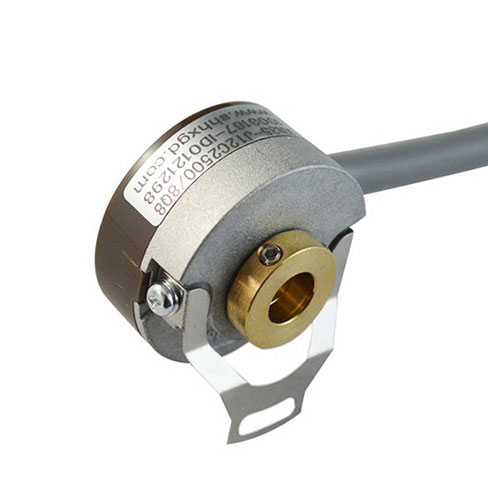

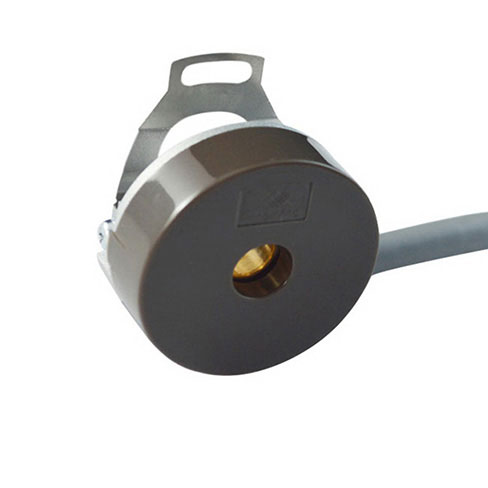

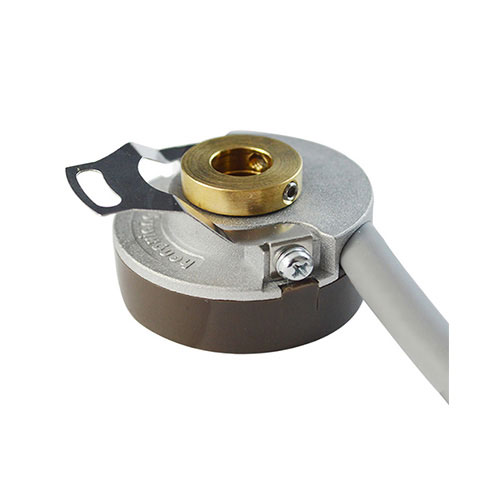

Brand	HENGXIANG
External Dimensions	External diameter: 35mm
	Thickness: 18mm
	Shaft diameter:6mm/7mm/8mm
Resolution	1024;2048;2500;3600;5000;7200;10000;14400
	1000/6; 1000/8; 1024/6; 1024/8; 2048/6; 2048/8; 2500/6; 2500/8
Output Phase	Phase A,B,Z,U,V,W,
Supply voltage	DC5V & DC8-30V
Outlet type	Cable out from side
Output Mode	Collector open circuit output(NPN &PNP)
	Voltage output
	Line Driver (26LS31)
	Line Driver ( 26C31)
	Line Driver(IC-HD7)
Environmental temperature	Operating temperature:-20~+100° (Non icing)
	Storage temperature: -25~+110° (Non icing)
Environmental humanity	Operating and storage: 35~90%RH (non-condensing)
Protection grade	IP40
Cable length	500mm (cable length could be added )
Shell	Aluminium
Package	Carton box
Net weight	About 80g (with package)
Certification	CE

More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.

Lead time:

1-3 working days for sample
7-10 working days for mass production

Shipment:

we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.

so that we could offer the best shipping cost with encoder products while quotation.

If you do not have your own courier account, our factory will check the cheapest price with suitable express together,

then you won't have to worry about shipment.
