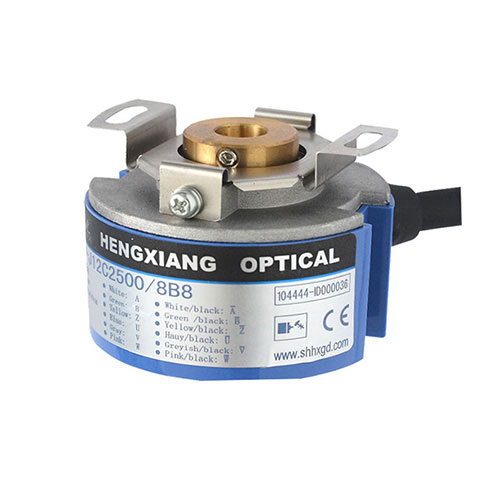

Product introduction：
-External diameter Φ48mm , thickness 34mm
-Shaft (straight hole): Φ6mm;Φ8mm;Φ10mm;Φ12mm
-Resolution :Max to 5000P/R
-Output Phse:A;B;Z;U;V;W
Position：HOME > PRODUCTS > Encoder > Servo Motor Encoder > Servo encoder
Product introduction：
-External diameter Φ48mm , thickness 34mm
-Shaft (straight hole): Φ6mm;Φ8mm;Φ10mm;Φ12mm
-Resolution :Max to 5000P/R
-Output Phse:A;B;Z;U;V;W
| Items | Basic parameters | |
| External dimensions | External diameter: 48mm | |
| Thickness: 34mm | ||
| Hollow Shaft diameter: 6mm/8mm/10mm/12mm | ||
| Resolution | 22;50;60;100;200;250;256;300;360;400;450;500;512;600; | |
| 700;720;1000;1024;1200;2000;2048;2500;3600;4096;5000 | ||
| 4 poles,6poles,8poles,12poles | 2000/6;2000/8;2000/12;2048/6;2048/8;2500/4;2500/6;2500/8;2500/12;4096/8 | |
| Output phase | Phase A,B,Z,U,V,W or A- B- Z- U- V- W- | |
| Supply voltage | DC5V & DC8-30V | |
| Outlettype | Cable out from side (with metal sleeve) | |
| Output mode | Open Collector circuit output | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| Long line drive (RT7272) | ||
| Long line drive (26LS31)-Phase ABZ back of UVW | ||
| Environmental temperature | Operating temperature: -20~+80° (Non icing) | |
| Storage temperature: -25~+85° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 | |
| Cable length | 500mm(Can be added) | |
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 140g (with package) | |
| Certification | CE | |
