Product introduction：
-Heavy Duty Solid Shaft rotary encoder spindles encoder
-Shaft:Φ8mm (D type)
-Pulse: 1000ppr to 23040ppr
-Supply voltage :DC5V&DC8V-30V
Position：HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀52mm
Product introduction：
-Heavy Duty Solid Shaft rotary encoder spindles encoder
-Shaft:Φ8mm (D type)
-Pulse: 1000ppr to 23040ppr
-Supply voltage :DC5V&DC8V-30V

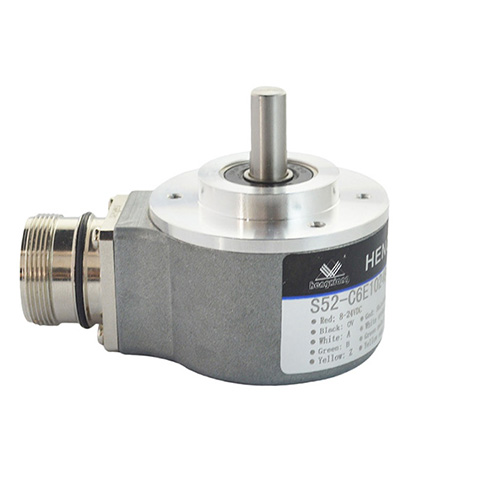

S52 Heavy Duty Solid Shaft rotary encoder spindles encoder external diameter 51mm solid shaft 8mm HTL output customizable

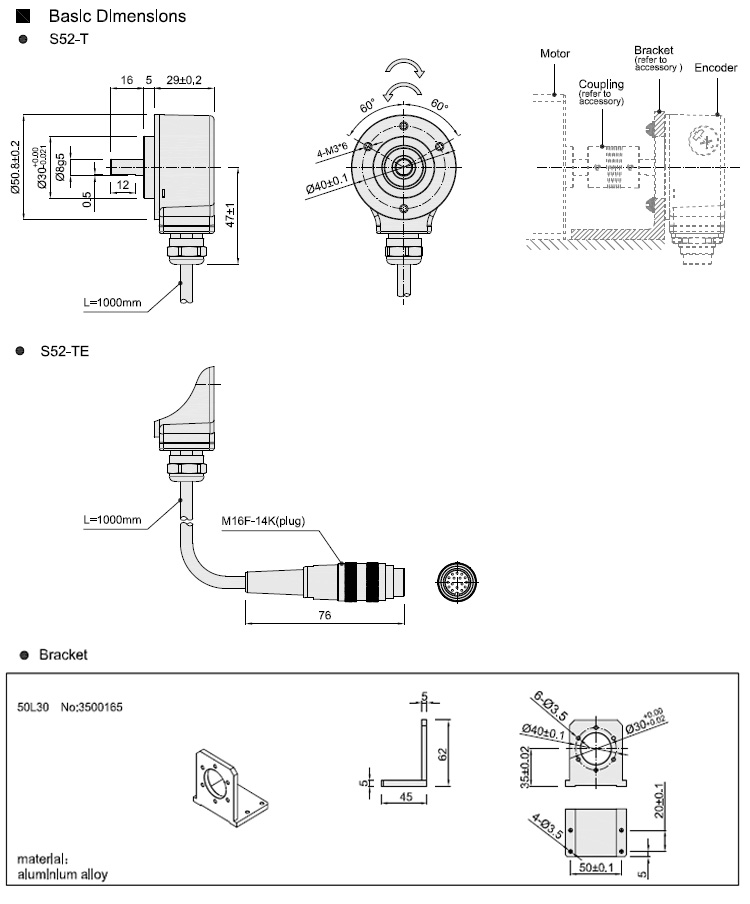

Product Information for S52 encoder
| Items | Basic parameters | |
|
External dimensions |
External diameter: 52mm | |
| Thickness: 29mm | ||
| Shaft diameter: 8mm | ||
| Resolution | 1000;1024;1200;1250;1440;2000;2048;2500;2880;3000;3600; | |
| 4096;5000;5760;8192;10000；11520；16384；20000；23040 | ||
| 8192;10000；11520；16384；20000；23040 | ||
| 1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6; | ||
| 2048/8;4096/4;4096/6;4096/8;8192/4;8192/6;/8192/8 | ||
| Output phase | Phase A,B,Z,U,V,W | |
| Supply voltage | DC5V & DC8-30V | |
| Outlettype | Cable out from back | |
| Socket out from back | ||
| Cable out from back with socket | ||
| Output mode | Open Collector circuit output | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| compatible RS422 | ||
| Long line drive (RT7272) | ||
| Environmental temperature | Operating temperature: -20~+85° (Non icing) | |
| Storage temperature: -25~+90° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 & IP66 | |
| Cable length | 1M (cable length could be added appropriately by | |
| require, but it need payment individually) | ||
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 300g (with package) | |
| Certification | CE | |
More details
Why choose us?
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product
ability;
Factory directly provide a
competitive price;
One-stop service--for your efficient
purchasing experience;
OEM design accepted--customized design, your own brand accepted.
Factory Encoder Production Capability
5000 pieces per month
-------- Production Line Capacity
50000 pieces per year
--------Actual Units Produced (Previous Year)
Shipment
o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
o You could select the express according to your requirements if freight collector
o If you do not have any courier account, we will check and find a cheapest and safety express for you.
o Our factory has 30% discount with most courier company, so price could be as cheap as possible.
Our advantage
· Over 18 years encoder production experience
· More than 20 years experienced engineers
· Professional working team
· High quality standard
· Quick Response time
· Utility Model Patent Certificate
· Own brand and unique brand
· CE certification for all models
· Prompt delivery date
· 100% full inspection before shipment
S52 encoder model number for reference
S52-T2N1024 DC12V
S52-Q2F2048 DC30V
S52-TE3V1200 DC8-30V
S52-T3F5760 DC24V
S52-Q4E8192 DC5V
S52- TE4C5000
S52-T6C3600
S52-Q6E2000
S52-TE3PH10000
S52-T12C1024/4 DC5V
S52-Q12E2048/6 DC8-30V
S52-TE12C4096/8 DC5V
