Product introduction：
-Solid Shaft Incremental encoder
-Shaft:Φ8mm (D type)
-Storage temperature: -25~+100° (Non icing)
-Pulse range :1000ppr to 23040ppr
Position：HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀50mm
Product introduction：
-Solid Shaft Incremental encoder
-Shaft:Φ8mm (D type)
-Storage temperature: -25~+100° (Non icing)
-Pulse range :1000ppr to 23040ppr

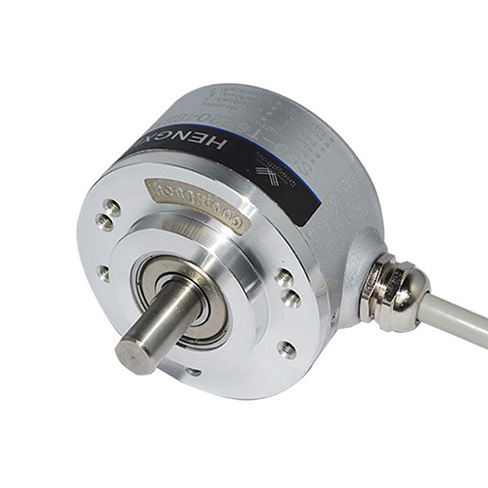

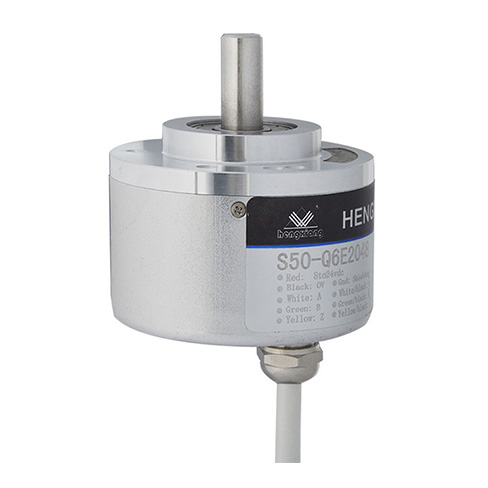

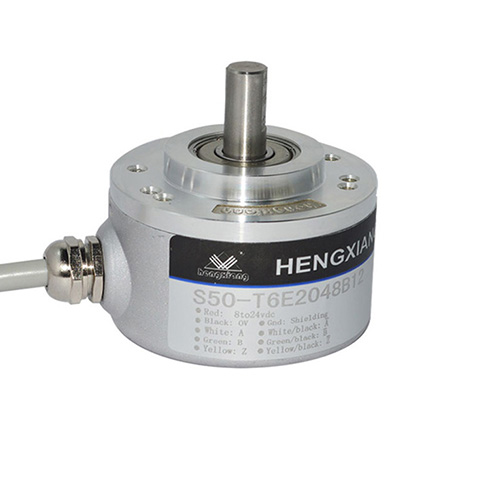

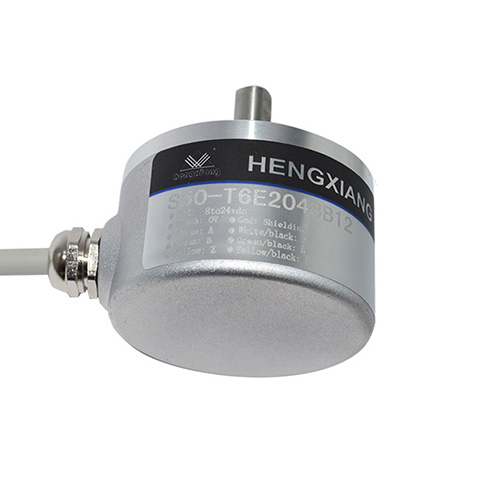

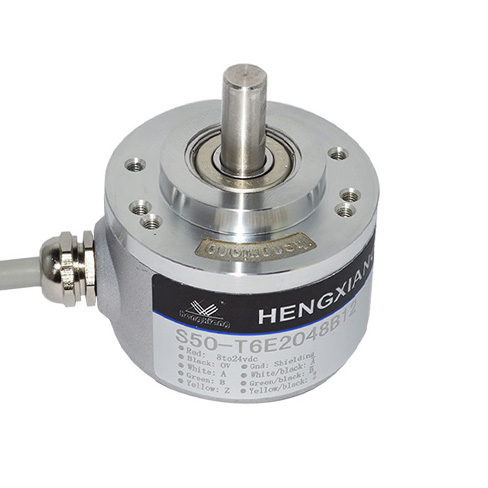

S50 Solid Shaft Incremental encoder 23040ppr thickness 30mm high resolution rotary encoder protective grade IP65
Encoder video
There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.
At the same time, you could also visit our YOUTUBY page easily.
Most of the encoder series have videos for reference.
Application
DC motor
Stepper motor
Servo motion controller
Gearbox
DC garage door motor
DC servo motor
Stock driver
FS machine
VFFS machine
Packing machinery
Capsule filling machine
Paper cutter
CNC machine tool
Automatic measurement
Remote control
Product Basis information
Encoder type: Incremental encoder
Shaft length: 16mm
Solid Shaft diameter: 8mm (D shape)
Resolution: 50;60;100;200;250;256;300;360;400;450;500;512;600; 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000；11520；16384；20000；23040
Output phase: Phase A+, B+, Z+ A- B- Z-
Supply voltage: Supply voltage
Environmental temperature: Operating:-20 ～+90°；storage:-25 ～+100°
Shaft Material: Stainless steel
Our advantage
More than 20 years experienced engineers
Professional working team
High quality standard
Quick Response time
CE certification for all models
Prompt delivery date
100% full inspection before shipment
Our Selling points
1. Quick response once received customer’s quotation query
2. Professional engineer team, to solve your problems at any time
3. Strictly inspection before shipment
4. Various encoder models to be selected
5. Short lead time
Parameter table

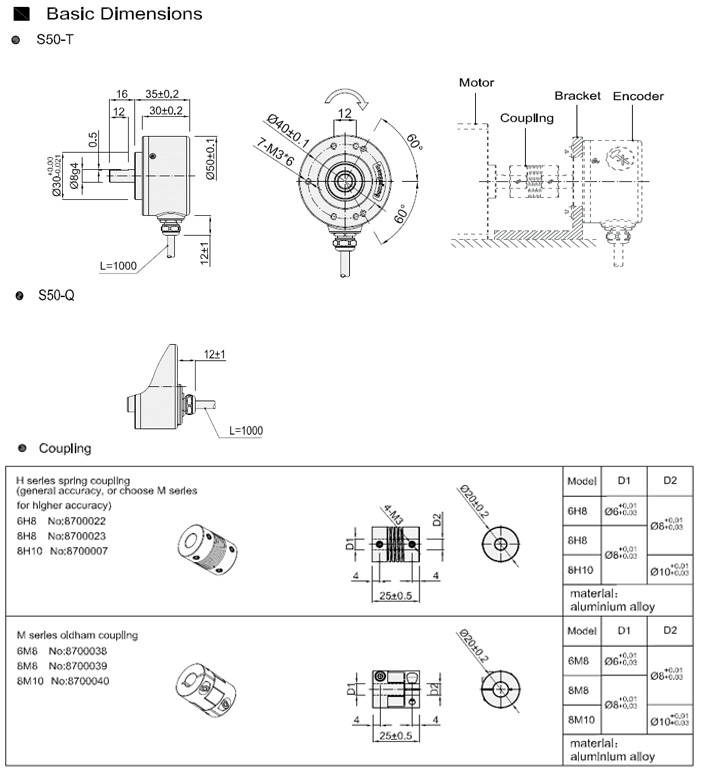

| ITEM | PARAMTERS | ||||||
| External dimensions | External diameter: 38mm ;Thickness: 28mm ;Shaft diameter: 6mm | ||||||
| Resolution |
50;60;100;200;250;256;300;360;400;450;500;512;600;700;720;800;900;1000;1024;1200 ;2000;2048;2500;5000；8192;10000；11520；16384；20000；23040 |
||||||
| Output phase | Phase A,B,Z,A-,B-,Z- | ||||||
| Outlettype | Socket/Cable out from side & back | ||||||
| Protection grade | IP50 & IP65 | ||||||
| Cable length | 1000MM | ||||||
| package | Carton box | ||||||
| Weight | About 190g (with package) | ||||||
| Certification | CE/ ISO9001 | ||||||
| Output mode | N -pen Collector(NPN) | V-Voltage output | F-Push-pull output | C- Line driver (26LS31) & RS422 | E- Line driver(7272) | ||
| Supply voltage | DC+5V±5% & DC8-30V±5% | DC+5V±5% | DC8-30V±5% | ||||
| Consumption current | 100mA MAX | 200mA MAX | |||||
| Top response frenquency | 100KHZ | 200KHZ | |||||
| Output volume | output current | Input | ≤30mA | Load resistance 2.2K | ≤30mA | ≤±20mA | |
| output | - | ≤10mA | |||||
| output voltage | "H" | - | - | ≥(supply voltage-2.5V) | ≥2.5v | ||
| "L" | ≤0.4V | ≤0.7V(Less than 20mA) | ≥0.4V(when≤30) | ≤0.5V | |||
| Load Voltage | ≤DC30V | - | |||||
| Rise & Fall time | less than 2us(load resistance 1KΩ、cable length:2M | less than 1us(cable length:2m) | |||||
| Origin motion | low lelvel available | high level available | low level available | high level available | |||
| starting torque | less than 10mN.m | ||||||
| Intertia moment | less than 3x 10-6kg.m2 | ||||||
| Shaft load | Radial 50N; Axial 30N | ||||||
| Top REV | 5000RPM | ||||||
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+85° | ||||||
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | ||||||
| Vibration(endure) | Amplitude 0.75mm,10-50Hz,1 hour for three axis individually | ||||||
| Sock(endure) | 49m/s2 ,three times for X,Y,Z direction individually | ||||||
| Material | Main body: aluminium alloy | ||||||
| Cable length | 1000mm(cable with shielding) | ||||||
