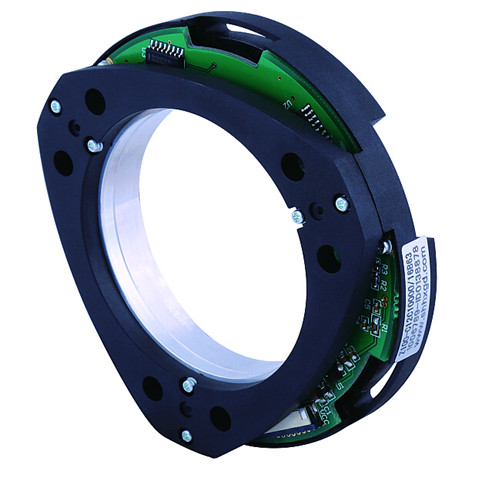

Z100 module encoder

Product introduction:

External dimensions : Small volume, external diameter : Φ100mm, thickness :16mm

diameter of shaft: Φ40-65mm

Resolution : up to 10000P/R

Supply voltage : DC5V&DC8-30V

Data download
Detail display
Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 100mm
Thickness 16mm
Hollow shaft type through hole
Hollow shaft diameter 40mm;63mm;65mm
Resolution 2500/82500/10;2500/16;5000/10;5000/16;
10000/8;10000/10;10000/16
Output phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Output mode radial cable
radial socket
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
rise/fall time less than 1 us(cable length:2 meters)
Consumption current 120mA MAX
Top response frenquency 300KHZ
GND not connect to encoder
Slew speed 5000rpm
Environmental temperature Operating:-20 +80°storage:-25 +90°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminium alloy
Certification CE
package Carton box
Net weight About 180g (with package)
