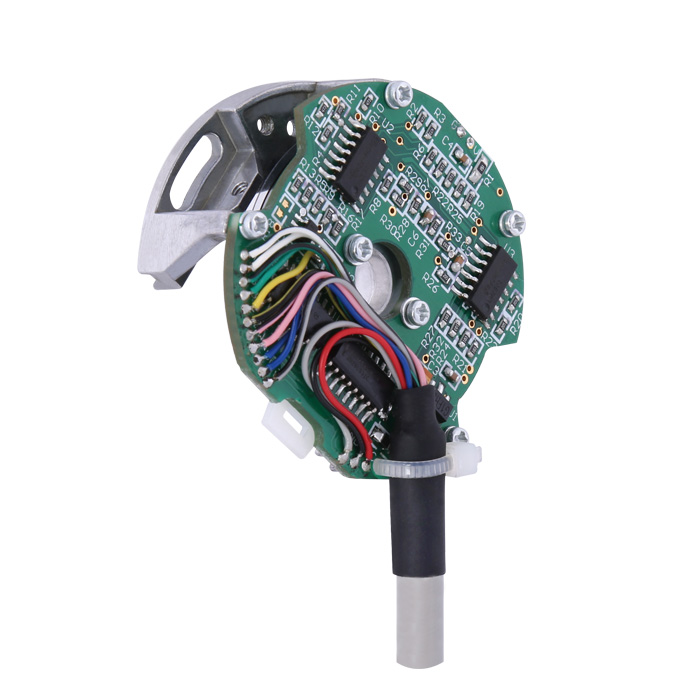

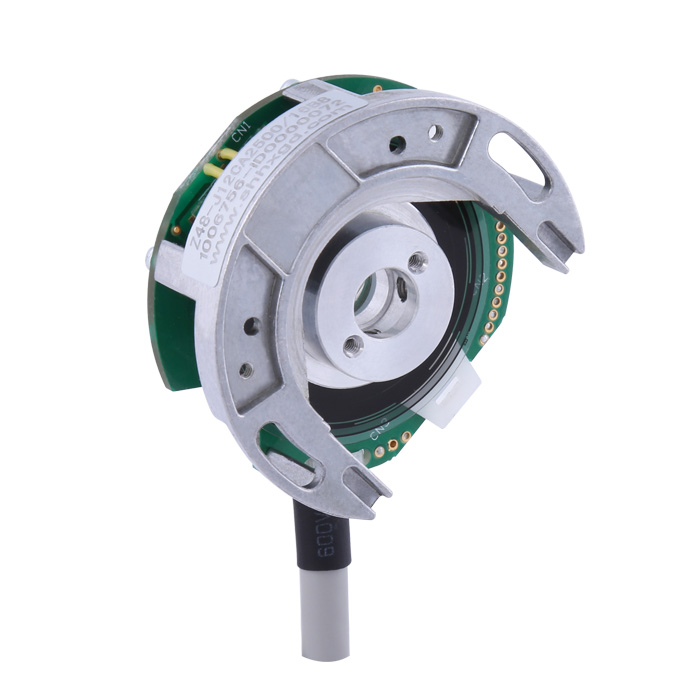

Z48 encoder module

Product introduction：

External dimensions : Φ48mm, thickness : 22.5mm

diameter of shaft: Φ8mm

Resolution : up to 1024P/R

Supply voltage : DC5V;DC8-30V

Data download

Detail display

Items	Basic parameters
Brand	HENGXIANG
Encoder type	bearingless encoder
External diameter	48mm
Thickness	22.5mm
Dimension of limiting slot	30mm, depth 2.4mm
Installation dimension	R22.35mm
Hollow shaft type	through hole
Hollow shaft diameter	8mm
Resolution	50;60;100;200;250;256;300;360;400;450;500;512;600;1000;
	1024;1200;2000;2048;2500;
	1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8-30V
Outlettype	Cable out from side
Output mode	NPN/(Open Collector Output)
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
Cable length	500mm
Consumption current	100mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	not connect to encoder
Mark to Space ratio	45% to 55%
Environmental temperature	Operating:-20 ～+80°；storage:-25 ～+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Material	aluminium alloy
Certification	CE
package	Carton box
Net weight	About 60g (with package)
