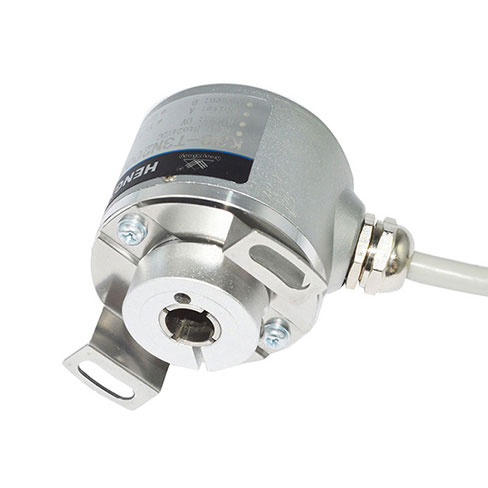

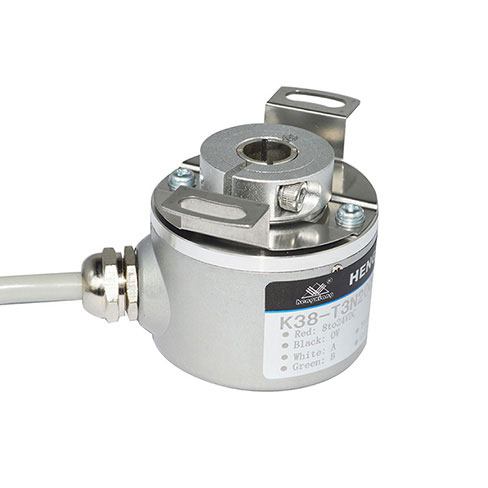

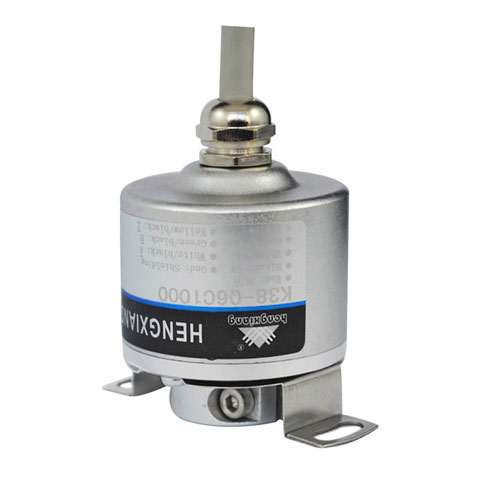

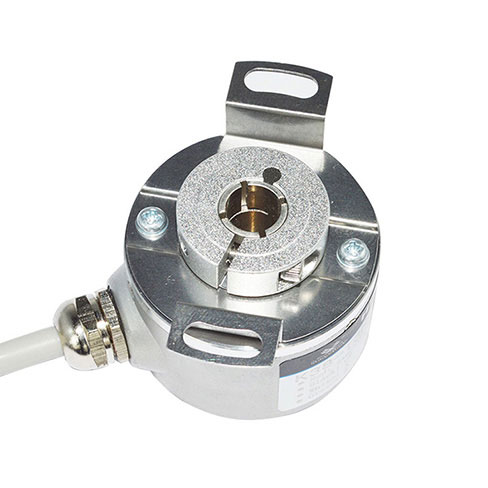

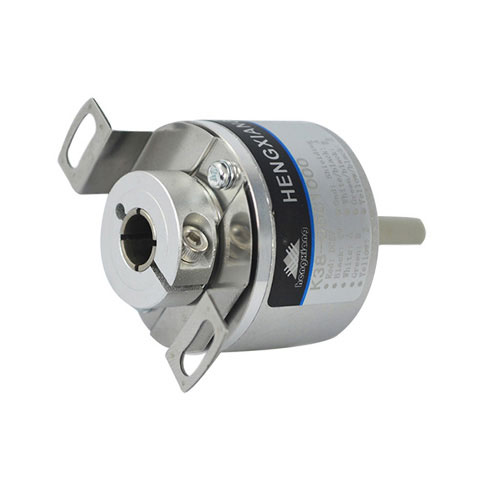

Product introduction：
-External diameter : Φ38mm, thickness : 28mm;-Shaft : Φ8mm(Blind Hole)
-Resolution : 16384P/R
-Signal Output: ABZA-B-Z-,Line driver output
-Supply voltage : DC5V
-Protection Grade : IP50
Position：HOME > PRODUCTS > Encoder > Incremental -Hollow Shaft Encoder > ⌀38mm
Product introduction：
-External diameter : Φ38mm, thickness : 28mm;-Shaft : Φ8mm(Blind Hole)
-Resolution : 16384P/R
-Signal Output: ABZA-B-Z-,Line driver output
-Supply voltage : DC5V
-Protection Grade : IP50
| Items | Basic parameters | |
| External dimensions | External diameter: 38mm | |
| Thickness: 28mm | ||
|
Shaft diameter: 5mm;6mm;8mm;10mm(blind hole) 6mm;6.35mm(through hole) |
||
| Resolution | 50;60;66;100;200;250;256;300;360;400;450;500;512;600; | |
| 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384 | ||
| Output phase | Phase A,B,Z or A- B- Z- | |
| Supply voltage | DC5V & DC8-30V | |
| Outlettype | Cable out from side (with metal sleeve) | |
| Cable out from back (with metal sleeve) | ||
| Output mode | NPN/PNP(Open Collector Output) | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| Compatible RS422 | ||
| Long line drive (RT7272) | ||
| Environmental temperature | Operating temperature: -20~+80° (Non icing) | |
| Storage temperature: -25~+85° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 & IP65 | |
| Cable length | 1M | |
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 140g (with package) | |
| Certification | CE | |
More details
MOQ: 1pcs
Price:Click online service or email us right now to get the latest quotation.
Lead time:
1-3 working days for sample
7-10 working days for mass production
Shipment:
we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.
so that we could offer the best shipping cost with encoder products while quotation.
If you do not have your own courier account, our factory will check the cheapest price with suitable express together,
then you won't have to worry about shipment.
About HENGXIANG encoder Factory
our factory founded in 2001, ,main encoder products are China rotary encoder, incremental encoder, absolute encoder, magnetic
encoder, servo motor encoder, cnc rotary encoder,
encoder module, encoder disc, encoder code, solid shaft encoder, hollow shaft encoder, spindle encoder,elevator encoder, industry encoder, etc
we could offer all kinds of encoders according to customer's requirements.
After more than 17 years of continuous development and efforts, our factory has built the engineer team,including 5-7 professional
engineers, both are highly experienced in study and develop in high technology of encoder.
As a professional manufacturer of rotary encoders, our factory independently develops dozens of product series, which are widely
used in elevators, servo motors, CNC machine tools, textile machinery, robots, wind power,
medical, assembly lines and other automation industries, with operations in 34 provinces and cities nationwide.
And more than 170 countries and regions around the world, won the trust and praise of customers.
Our SHANGHAI HENGXIANG ENCODER FACTORY has obtained a number of invention patents and utility model patents, and passed
the “Shanghai High-tech Achievement Transformation Project” certification,
ISO9001 quality management system certification and CE certification.
Our aim: to meet customer needs, create social value, service with heart, and work together for a win-win situation!
We warmly welcome new and old customers at home and abroad to come to the field to inspect and select and customize “Hengxiang” products.
