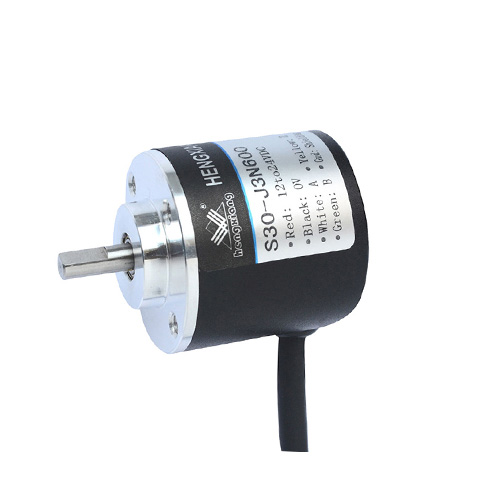

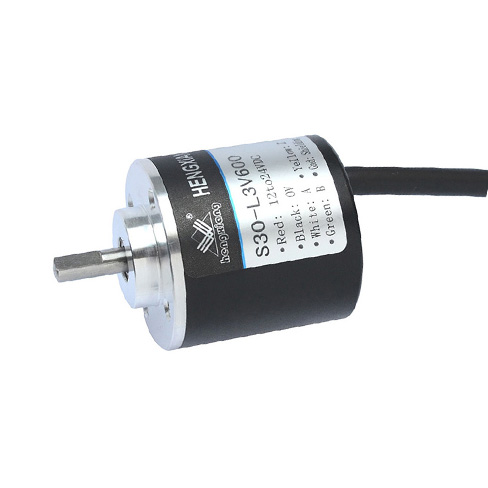

S30 Solid Shaft incremental encoder Miniature rotary encoder 1200 resolution open-collector output solid shaft 4mm

Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

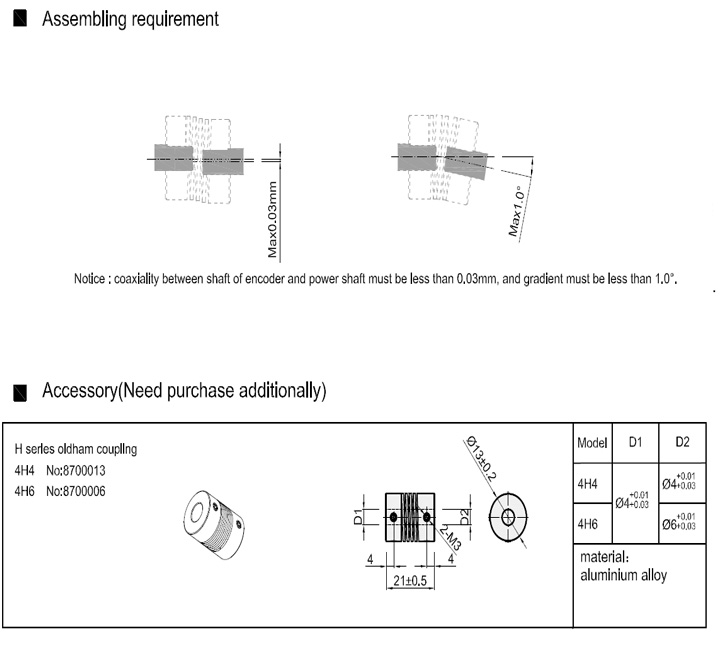

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.

Quick description of S30 series encoder

Cable length: 1000mm

Shell : Die cast aluminum

Consumption current: 100mA Max

Shaft Load: Radiel: 10N; Axial:5N

Slew Speed: 5000rpm

Insulation strength: AC500V 60s

Insulation resistance: 10MΩ

Shaft diameter: 4mm(D type)

Parameter table

More details

Applications

· Petrochemical industry

· Gearbox

· DC garage door motor

· DC servo motor

· Stock driver

· PMDC geared motor

· Brushless dc motor

· Servo motor

· CNC machine tool

· Automatic measurement

· Remote control
