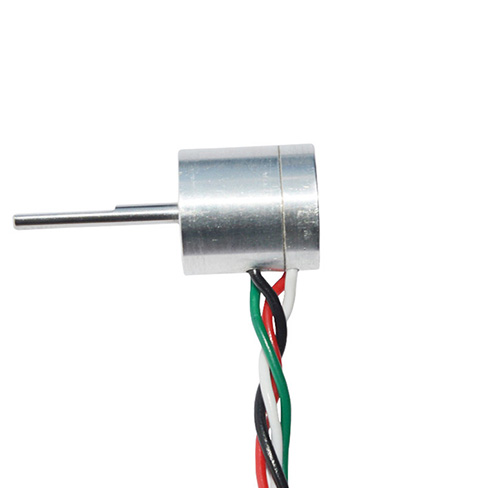

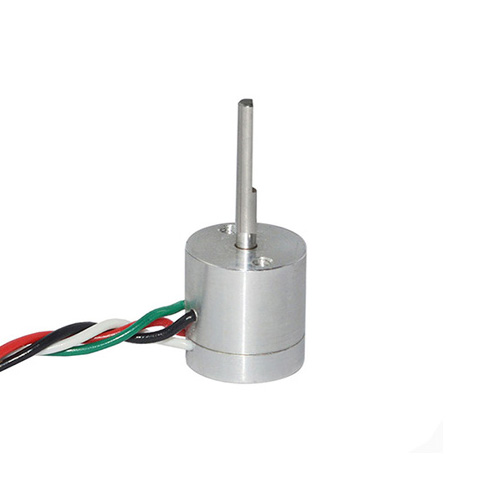

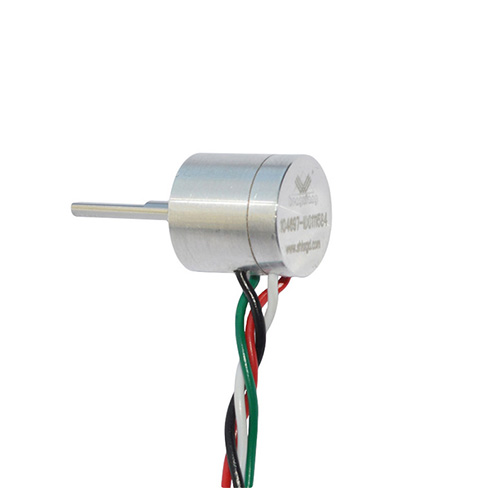

S12-J Quasi-sinusoidal Solid Shaft Encoder

Product introduction:

-Feature:Microminiature,logical compact Configuration and easy to stall

-External dimensions : External diameter : Φ12mm, thickness : 12mm

-Diameter of shaft:Φ2mm (D type)

Data download
Detail display

Items Basic parameters
External dimensions External diameter: 12mm
Thickness: 12mm
Shaft diameter: 2mm (D type)
Resolution 100;200;300
Output phase Quasi-Sinusoidal ;A phase
Output Wave Quasi-Sinusoidal Wave
Supply voltage DC5V
Outlettype Cable out from side
Starting Torque 0.05 mN-m(0.5gf.cm) maximum
Intertia Moment 0.01 g-cm2 maximum
Shaft Load Radial 1.9N(200gf) maximum
Axial 4N(500gf) maximum
Environmental temperature Operating temperature: -10~+70° (Non icing)
Storage temperature: -20~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP40
Cable length 100mm
Shell Aluminium,304
package Carton box
Net weight 10g
Certification CE


More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.


Lead time:

1-3 working days for sample
7-10 working days for mass production


Shipment:

we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.

so that we could offer the best shipping cost with encoder products while quotation.

If you do not have your own courier account, our factory will check the cheapest price with suitable express together,

then you won't have to worry about shipment.
