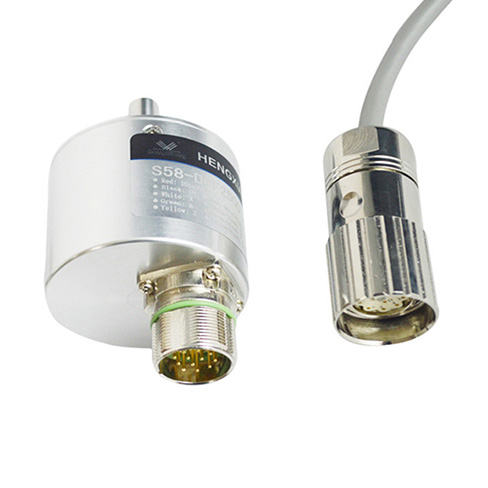

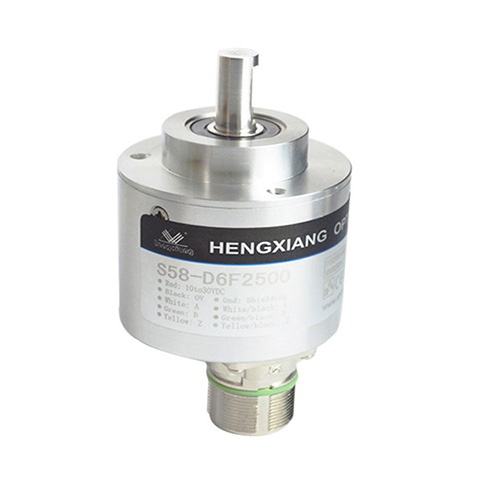

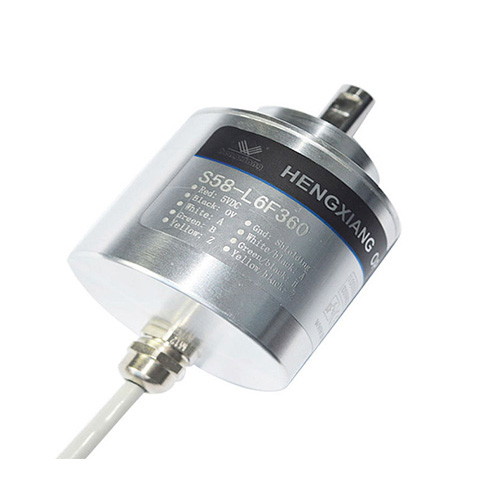

S58 Solid shaft Heavy Duty Encoder Quadrature rotary encoder complementary output with alarm/sensing
| Items | Basic parameters | |

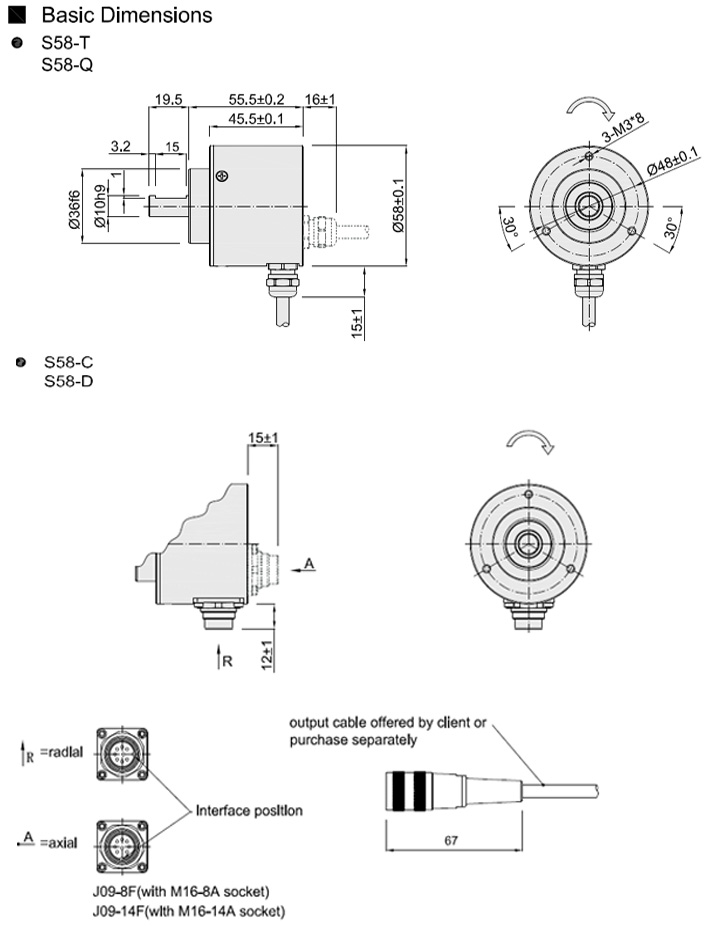

| External dimensions | External diameter: 58mm | |
| Thickness: 46mm | ||
| Shaft diameter: 10mm | ||
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600; | |
| 700;720;800;900;1000;1024;1200;2000;2048;2500;5000 | ||
| 8192;10000；11520；16384；20000；23040 | ||
| Output phase | Phase A,B,Z , A- B- Z- | |
| Supply voltage | DC5V & DC8-30V | |
| Outlettype | Cable out from back | |
| Socket out from back | ||
| Output mode | Collector open circuit output | |
| Voltage output | ||
| Push-pull output | ||
| Difference output | Long line drive (26LS31) | |
| compatible RS422 | ||
| Long line drive (RT7272) | ||
| Environmental temperature | Operating temperature: -20~+80° (Non icing) | |
| Storage temperature: -25~+85° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 & IP65 | |
| Cable length | 1M (cable length could be added appropriately by | |
| require, but it need payment individually) | ||
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 420g (with package) | |
| Certification | CE | |
More details
Some part number for S58 series
S58-T3F8192C2
S58-Q2N4096
S58-D6C5000C5
S58-C4E2000
S58-T3N2048C6
S58-Q2F1200
S58-D1V1000
S58-C6E1024
S58-T4C200
S58-Q3V100 DC5V
S58-D2N60 DC8-30V
S58-C1F50 DC24V
Few Questions you may like to know before ordering
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.
