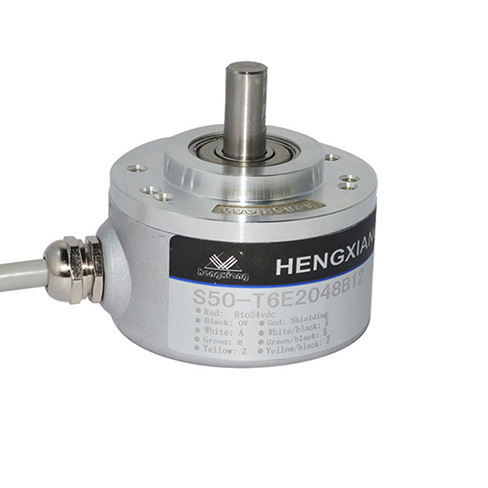

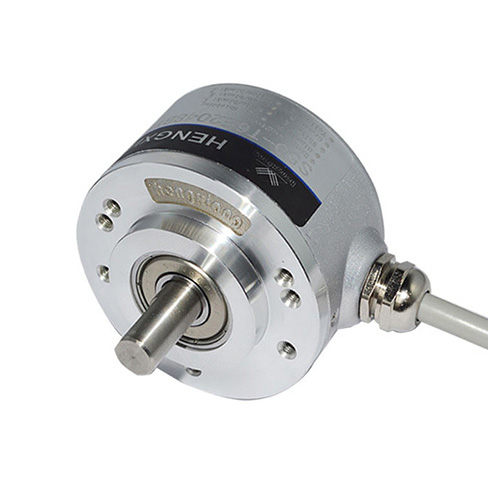

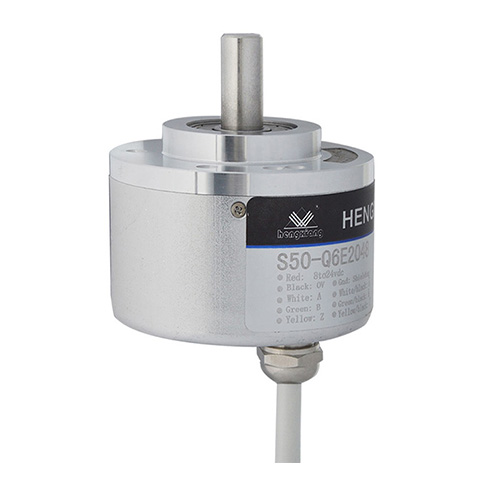

Product introduction：
-Encoder type :Optical Incremental encoder
-Shaft:Φ8mm (D shape shaft)
-IP level : IP50 ; IP65
-Pulse :50ppr to 23040ppr
Position：HOME > PRODUCTS > Encoder > Incremental - Solid Shaft Encoder > ⌀50mm
Product introduction：
-Encoder type :Optical Incremental encoder
-Shaft:Φ8mm (D shape shaft)
-IP level : IP50 ; IP65
-Pulse :50ppr to 23040ppr

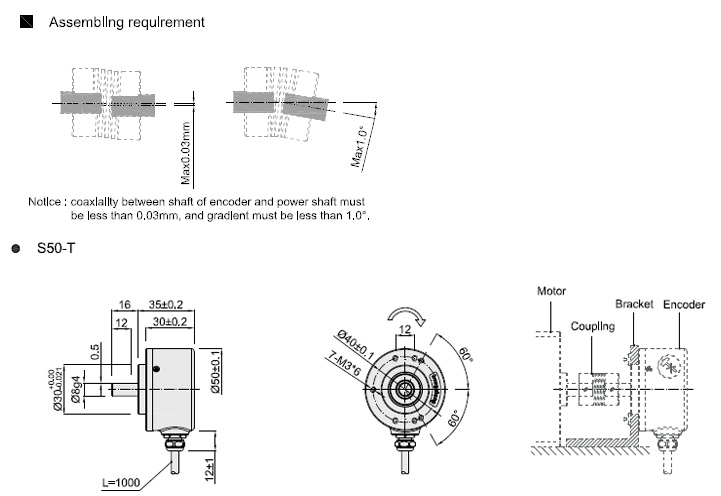

S50 Solid Shaft Incremental encoder 10mm axial length 16mm with 10mm coupling
Select a coupling for S50 solid shaft encoder
There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type
1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.
2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.
3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.
4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.
5. Here are some coupling part number, please carefully check before ordering.
4H4
6H6
6H8
8H8
8H10
6M6
6M8
8M8
8M10
Detail Specifications for S50 incremental encoder
| ITEM | PARAMTERS | ||||||
| External dimensions | External diameter: 38mm ;Thickness: 28mm ;Shaft diameter: 6mm | ||||||
| Resolution |
50;60;100;200;250;256;300;360;400;450;500;512;600;700;720;800;900;1000;1024;1200 ;2000;2048;2500;5000；8192;10000；11520；16384；20000；23040 |
||||||
| Output phase | Phase A,B,Z,A-,B-,Z- | ||||||
| Outlettype | Socket/Cable out from side & back | ||||||
| Protection grade | IP50 & IP65 | ||||||
| Cable length | 1000MM | ||||||
| package | Carton box | ||||||
| Weight | About 190g (with package) | ||||||
| Certification | CE/ ISO9001 | ||||||
| Output mode | N -pen Collector(NPN) | V-Voltage output | F-Push-pull output | C- Line driver (26LS31) & RS422 | E- Line driver(7272) | ||
| Supply voltage | DC+5V±5% & DC8-30V±5% | DC+5V±5% | DC8-30V±5% | ||||
| Consumption current | 100mA MAX | 200mA MAX | |||||
| Top response frenquency | 100KHZ | 200KHZ | |||||
| Output volume | output current | Input | ≤30mA | Load resistance 2.2K | ≤30mA | ≤±20mA | |
| output | - | ≤10mA | |||||
| output voltage | "H" | - | - | ≥(supply voltage-2.5V) | ≥2.5v | ||
| "L" | ≤0.4V | ≤0.7V(Less than 20mA) | ≥0.4V(when≤30) | ≤0.5V | |||
| Load Voltage | ≤DC30V | - | |||||
| Rise & Fall time | less than 2us(load resistance 1KΩ、cable length:2M | less than 1us(cable length:2m) | |||||
| Origin motion | low lelvel available | high level available | low level available | high level available | |||
| starting torque | less than 10mN.m | ||||||
| Intertia moment | less than 3x 10-6kg.m2 | ||||||
| Shaft load | Radial 50N; Axial 30N | ||||||
| Top REV | 5000RPM | ||||||
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+85° | ||||||
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | ||||||
| Vibration(endure) | Amplitude 0.75mm,10-50Hz,1 hour for three axis individually | ||||||
| Sock(endure) | 49m/s2 ,three times for X,Y,Z direction individually | ||||||
| Material | Main body: aluminium alloy | ||||||
| Cable length | 1000mm(cable with shielding) | ||||||
More details
Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
FAQ
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
Q: Where is your factory?
A: Our factory is located on Shanghai City.
Q: Can I pay a visit to your factory?
A: Yes, you we welcome to visit our factory at any time if convenient.
Q: How long is your delivery time?
A: Usually 3 working days for sample, 7-15 days for mass production,
The production date is according to order quantity.
